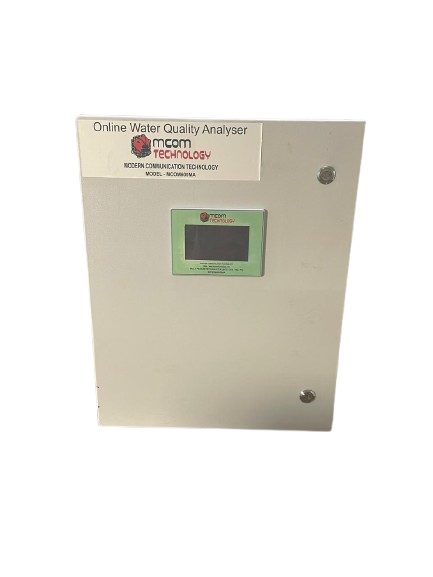

MCOM100MPA
is an IoT-based multi-parameter water quality analyser designed for continuous
online monitoring of important water parameters such as COD, BOD, TSS, TOC,
SAC, and temperature. Using advanced UV–VIS spectrophotometer technology, it
provides accurate and reliable measurement without the use of chemical
reagents.
The
analyser features digital RS-485 MODBUS communication for easy integration with
SCADA and automation systems. Its compact design, low maintenance, automatic
turbidity compensation, and self-cleaning capability make it suitable for
industrial, environmental, and wastewater monitoring applications.
1. Digital sensor, RS-485
output, supports MODBUS.
2. No reagents, no pollution, more economical and environmentally friendly.
3. Can measure COD, BOD, TSS, TOC, SAC and other parameters.
4. Automatic compensation for turbidity interference for excellent test performance.
|
Sr. No. |
ITEM |
PARAMETER |
|
1 |
Output Signal |
Support RS-485, MODBUS protocol |
|
2 |
Range |
TOC 1.5 to 410mg/l equiv KHP, COD 2.5 to 2000 mg/l equiv.
KHP |
|
3 |
Accuracy |
0.01mg/L COD |
|
4 |
Temperature Range |
+5 ~ 45°C |
|
5 |
IP Grade |
IP68 |
|
6 |
Maximum Pressure |
1 bar |
|
7 |
Calibration |
1 or 2 point COD calibration |
|
8 |
Power Supply |
DC 12V +/-5%, current < 50mA (When there is no
cleaning brush) |
|
9 |
Sensor Size |
54*325.5 mm |
|
10 |
Cable Length |
10m (default) |
|
11 |
Housing Material |
POM/SS316L |
·
Wastewater Treatment
·
Industrial Water Monitoring
·
Environmental Monitoring
