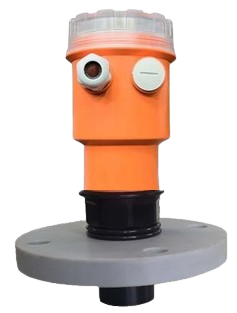

The MCOMUST is a non-contact ultrasonic level
transmitter designed for continuous level and distance measurement of liquids.
Its solid-state construction ensures high reliability with no moving parts,
minimal maintenance, and quick installation. With user-friendly programming via
built?in keys and LCD, the transmitter can be easily calibrated without
requiring the process medium.
· Compact & easy to
install
· No moving parts &
minimum maintenance
· User friendly program thru built?in keys & LCD
· Easy to calibrate without process medium.
|
1. |
MODEL NO. |
MCOMUST |
|
|
2. |
Measuring Range |
Up
to 30 meter |
|
|
3. |
Measuring
Mode |
Level, Distance |
|
4. |
Blanking Distance |
450 mm |
450 mm |
5. |
Beam Angle |
8 + 2° |
10 + 2° |
6. |
Power Supply |
24 VDC + 10 % |
|
7. |
Power Consumption |
0.5 W max |
|
8. |
Output |
4 to 20 mA /HART |
|
9. |
Max. Load |
400 ? @ 24 VDC |
|
10. |
Display |
Integral 4 digit dot matrix LCD |
|
11. |
Accuracy/Resolution |
± 0.5 %
FSD / 1mm |
|
12. |
Transducer MOC |
ABS |
|
|
13. |
Enclosure |
ABS with
polycarbonate window, IP65 |
|
14. |
Cable Gland |
M20 X 1.5 |
|
15. |
Process Connection |
2” BSP screwed x Flange 3"NB ASME 150# PP |
|
16. |
Optg. Temp. |
?20 ~ 70? |
|
17. |
Max Optg.
Pressure |
1 bar |
|
18. |
Accessories |
Mounting Bracket (CS),
Flanged Nozzle (CS),
FRP Canopy, Signal cable, 2 core, 1 mm2, PVC screened pair
(in mtr), Float
Cell Assembly. |
|
1. Raw
2. Waste
3. Effluent
4. Sewage
5. Filtered
6. Treated
7. Sea Water
8. Coolant
9. Oil and Slurry
