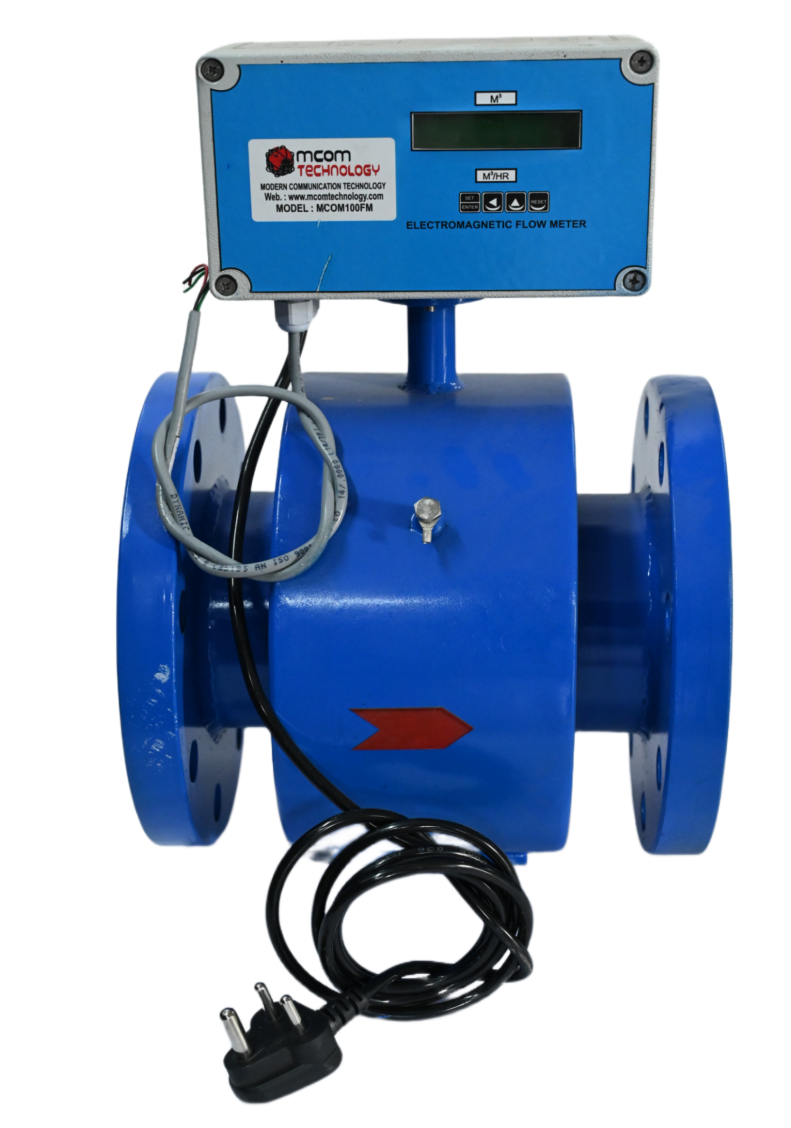

The MCOM-MFT-03 is a flanged or insertion-type electromagnetic flow meter designed for accurate measurement of conductive liquids in industrial, wastewater, chemical, and municipal applications with no moving parts and self-cleaning electrodes, it delivers stable performance, low maintenance, and long service life. The meter operates on Faraday’s Law, supports bi-directional flow, offers clear digital indication of flow rate and total, and requires only minimal straight-pipe lengths. Each unit is factory-calibrated and built with durable materials to ensure reliable measurement across a wide range of pipe sizes and process conditions.
|
Pipe size |
DN10
to DN2000 (for higher sizes consult factory) |
|
|
Flanges |
Carbon
Steel / SS 316 / SS 316L / SS 304 / ANSI / PN/DIN / BS / SMS / Tri-clamp. |
|
|
Pressure |
Up
to DN 80: PN 40, DN
100 to DN 200: PN 16, DN 250 to DN 350: PN 10 |
|
|
Temperature |
PFA
Liner |
0-200°C
max, |
|
PTFE
Liner |
0-150°C
max, |
|
|
Rubber
Liner |
0-90°C
max, |
|
|
(Ambient
temperature range 0-85°C). |
||
|
Accuracy |
±0.5% of reading [at ref. conditions]
between 100% to 10% of calibrated
range |
|
|
±0.7% of reading for flow rate between
10% to 5%[refer accuracy graph] |
||
|
Body materials |
Stainless steel / M.S. |
|
|
Liner |
Soft and Hard Rubber / PTFE / PFA/ Neoprene/Without
Lining |
|
|
Electrode |
Hastelloy ‘C’ /S.S.316 |
|
|
Electronics housing |
IP67
Die cast aluminium/ flame proof/IP 67/ IP 68 |
|
|
Power |
230VAC/110VAC, 50Hz/24VDC. |
|
|
Signal output |
4-20 mA dc isolated in max. 600 ohms. |
|
|
Frequency output |
0-10KHz prop. To 100% Flow rate (open collector
with10 mA/24Vdc max) |
|
|
Flow range |
0.3mtr/sec
to 12 m/sec |
|
|
Display digits |
for
flow rate |
for
total |
|
04
Digits |
09
Digits |
|
|
Units |
M3
/Hr |
M3 |
|
Litres/Minute |
Litres |
|
|
Litres/Second |
Litres |
|
|
Gallons/Minute |
Gallons
x 1000 |
|
|
Flow |
Bi-directional flow with separate
totalizers for forward and reverse flow |
|
