MCOM304IO

Model: MCOM304IO

Name: 16 CH IO CARD

Category: Remote IO Modules/Units

Discription:

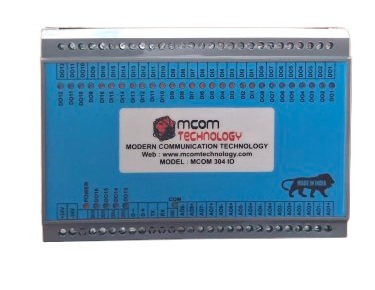

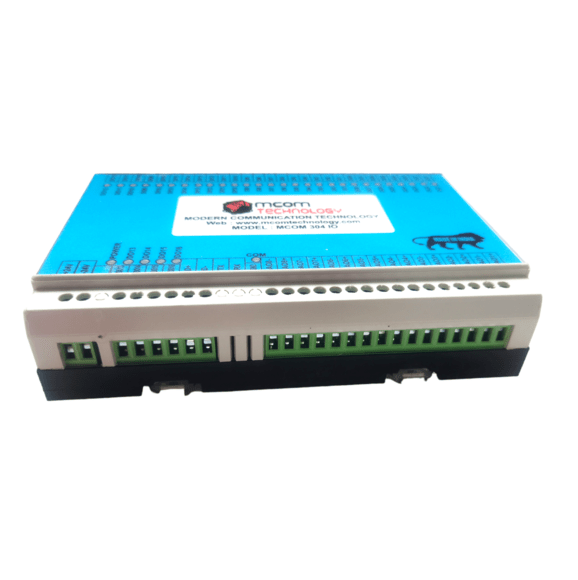

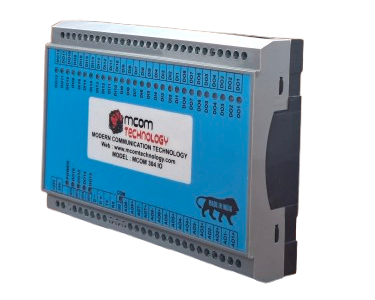

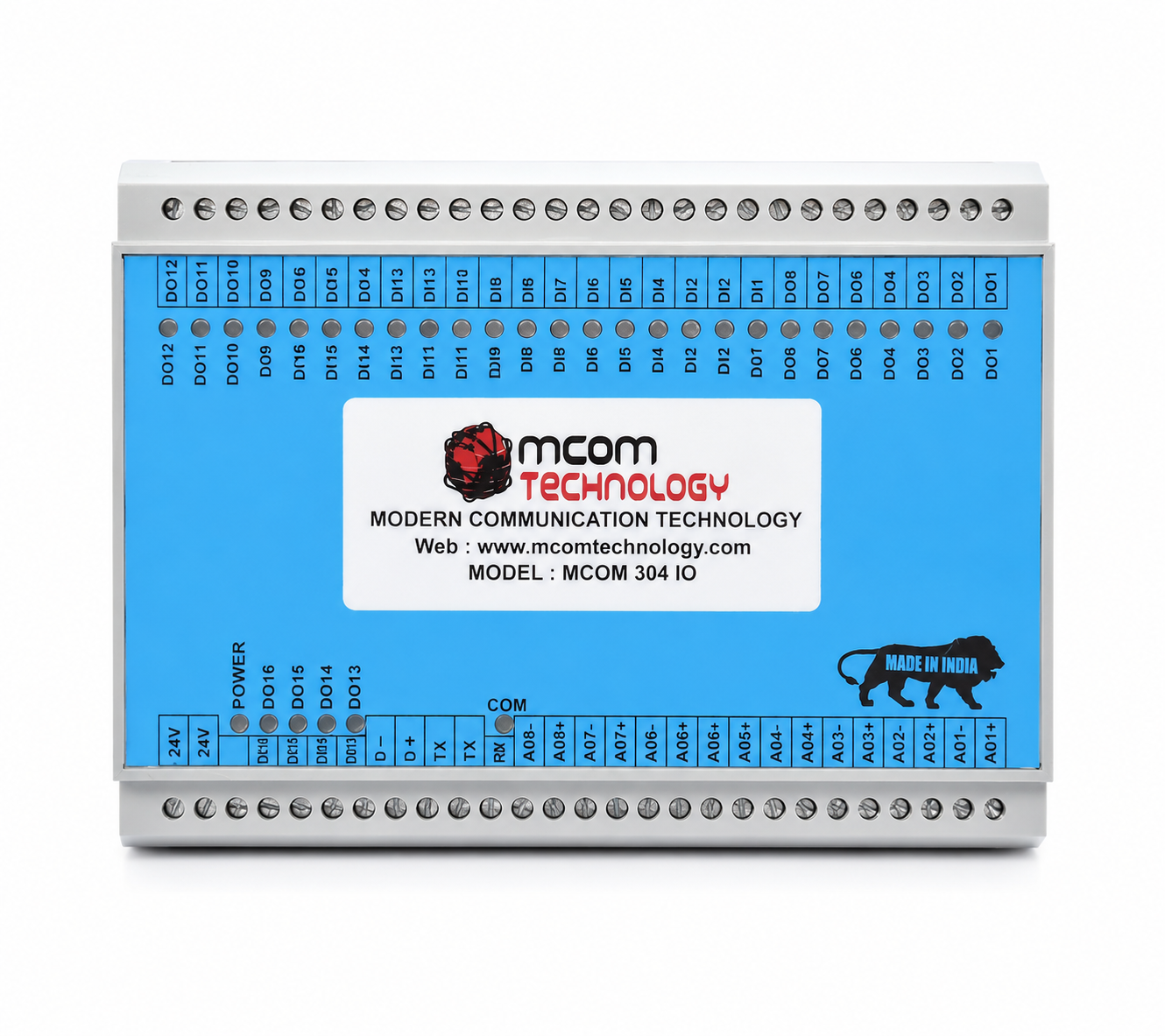

The MCOM304IO is an industrial I/O expansion module offering 16 digital inputs, 16 digital outputs, and 8 analog outputs with photocoupler isolation. It supports RS-485 Modbus RTU communication and is designed for reliable automation, control, and monitoring applications.

Download Brochure Get A Quote
  • Source-type Digital Outputs.
  • Sink-type Digital Inputs.
  • Photocoupler Isolation.
  • Single-ended for Analog Output.
  • Resolution: 12 bit for Analog Output.
  • Watchdog.
  • Cost-effective.
  • Wide Operating Temperature Range: -25 °C ~ +75 °C.

Digital Input

Input Channels

16

Type

Wet Contact (Sink)

On Voltage Level

+12.0 VDC ~ 30 VDC

Off Voltage Level

+11 V max.

Input Impedance

10 K?, 0.66 W



Digital Output

Output Channels

16

Type

Open Collector (Source)

Max. Load Current

500 mA/channel

Load Voltage

+12 VDC ~ +30 VDC



Analog Output

Output Channels

 8

Type

0 ~ 20 mA/ 4 ~ 20 mA
  • Industrial Automation
  • Industrial Machinery
  • Building Automation
  • Food and Beverage Systems
  • Semiconductor Fabrication
  • Control Systems
