The

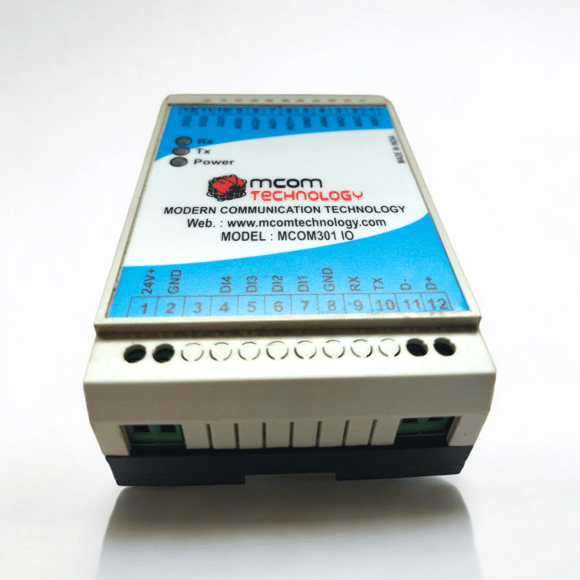

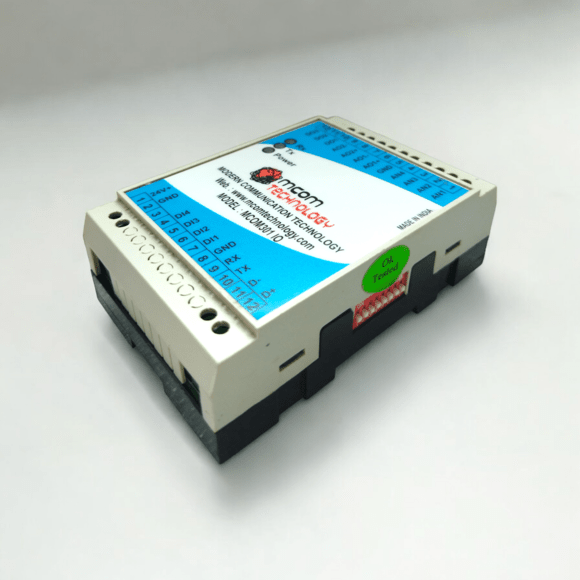

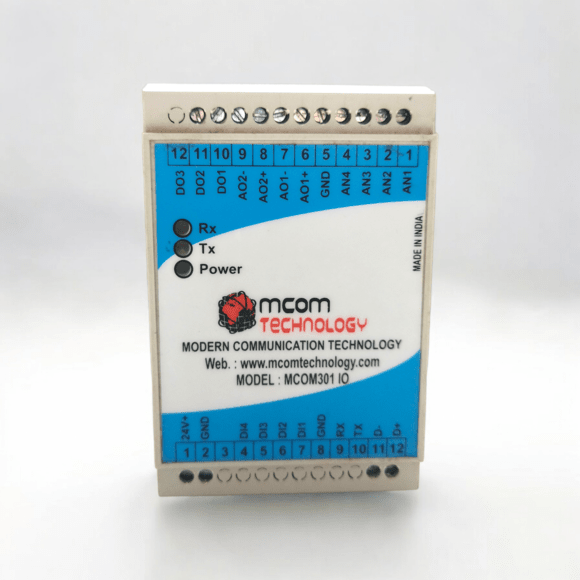

MCOM301IO is a compact industrial I/O expansion module for PLC, SCADA, and
automation systems. It provides digital and analog inputs/outputs with
photocoupler isolation and communicates via RS485 Modbus RTU. Designed for
robust industrial performance across -25°C to +75°C, it is ideal for industrial
automation, building control, and process monitoring.
· Source-type Digital Outputs
· Sink-type Digital Inputs
· Photocoupler Isolation
· 4-channel Single-ended for Analog
input.
· Resolution: 12 bit for Analog Output.
· Watchdog
· DIP Switch for device configuration
· Cost-effective
· Wide Operating Temperature Range: -25 °C ~ +75 °C
|
DIGITAL INPUT |
||
|
Input Channels |
4 |
|
|
Type |
Wet Contact (Sink) |
|
|
On Voltage Level |
+12.0 VDC ~30 VDC |
|
|
Off Voltage Level |
+11 V max. |
|
|
Input Impedance |
10 K?, 0.66 W |
|
|
DIGITAL OUTPUT |
||
|
Output Channels |
3 |
|
|
Type |
Open Collector (Source) |
|
|
Max. Load Current |
500 mA/channel |
|
|
Load Voltage |
+12 VDC ~ +30 VDC |
|
|
ANALOG INPUT |
||
|
Input Channels |
4 |
|
|
Type |
0 ~ 20 mA/ 4 ~ 20 mA |
|
|
Resolution |
12-bit |
|
|
Sampling Rate |
100 Hz total |
|
|
Accuracy |
+/-0.1% |
|
|
Zero Drift |
+/- 20 ?V/°C |
|
|
Span Drift |
+/- 25 ppm/°C |
|
|
Input Impedance |
Voltage |
10 M? |
|
Current |
100 ? |
|
|
Overvoltage Protection |
120 VDC |
|
|
Open Wire Detection for 4 ~ 20 mA |
Yes |
|
|
ANALOG OUTPUT |
||
|
Output Channel |
2 |
|
|
Type |
0 ~ 20 mA/ 4 ~ 20 mA |
|
