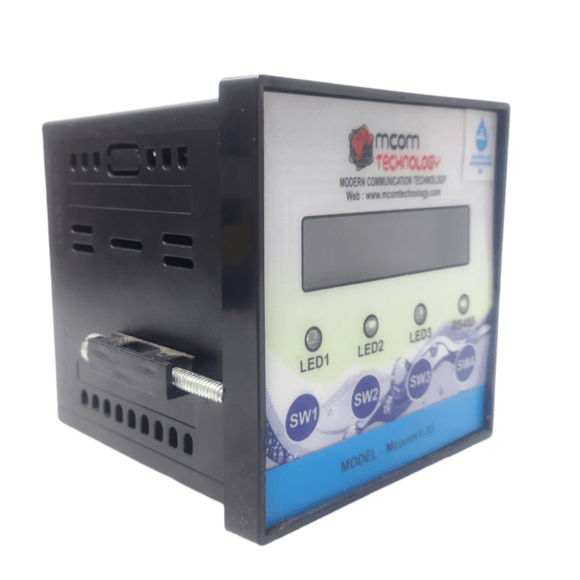

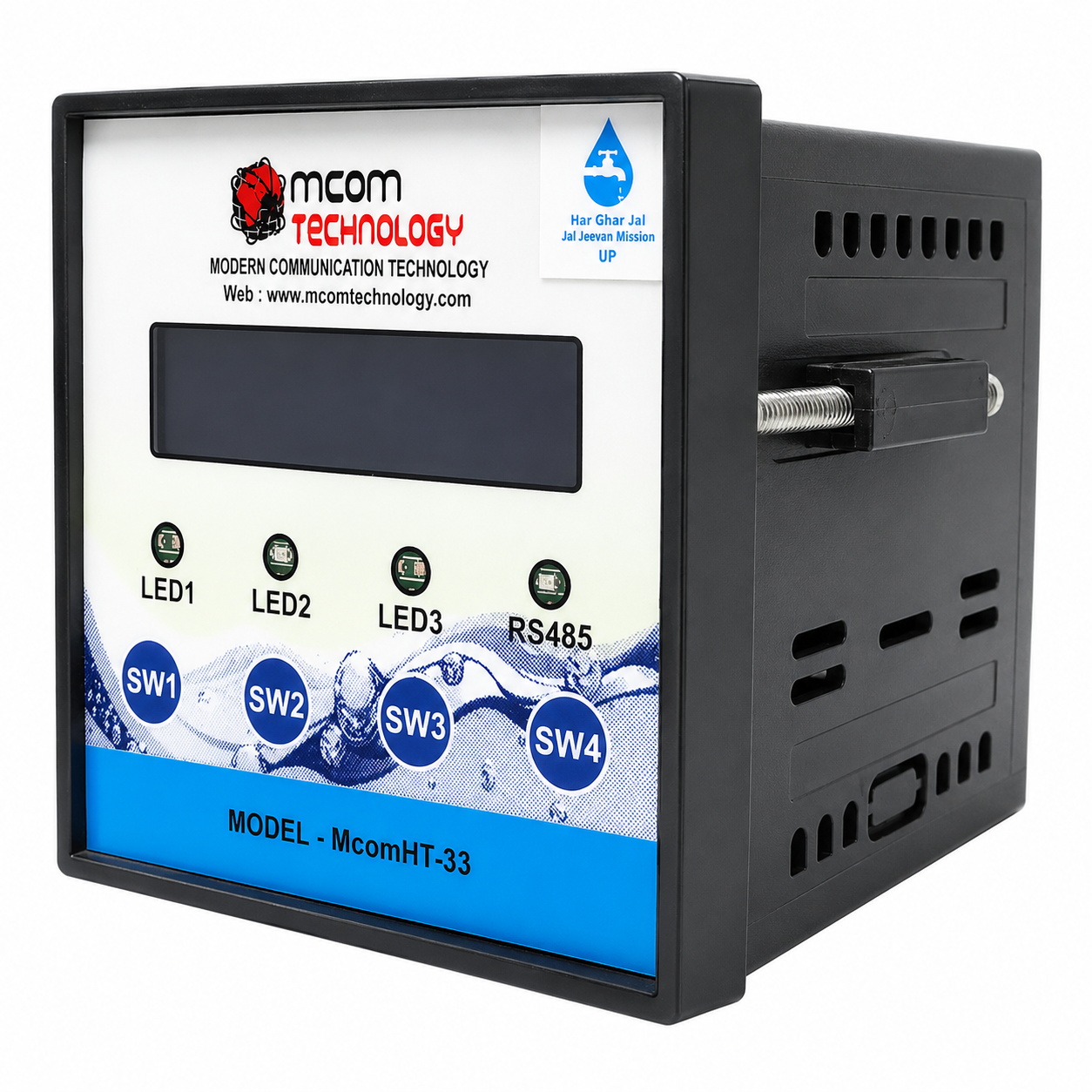

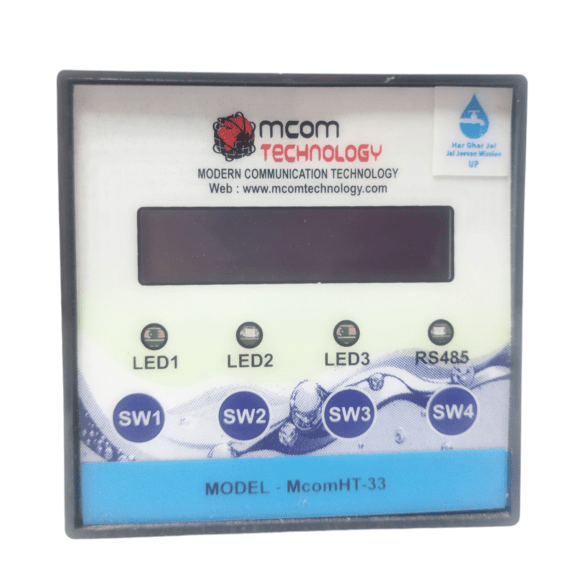

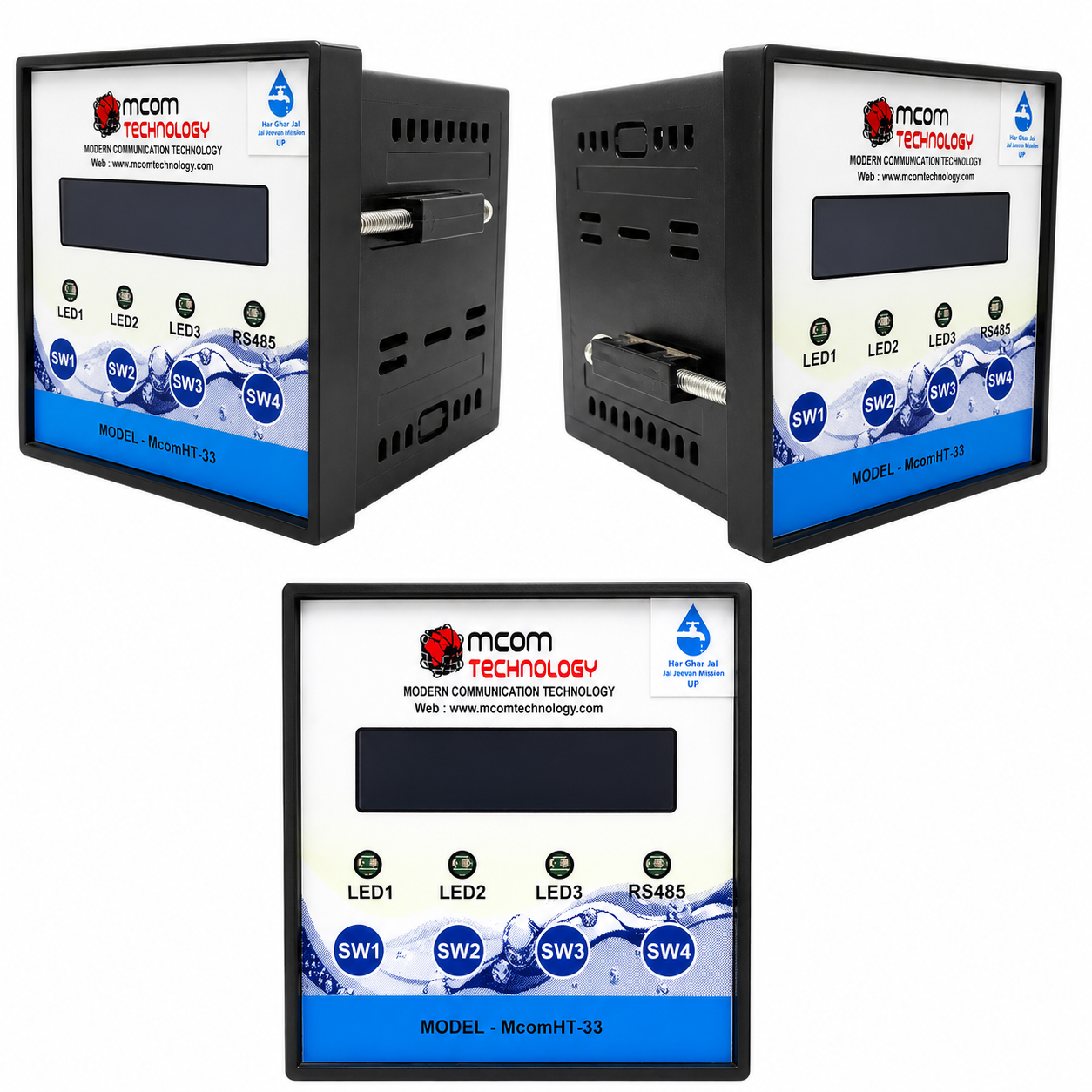

MCOMHT-33 hydrostatic transmitter
incorporates the latest technological advancements in piezoresistive sensing
& control. The transducer contains a laser trimmed, temperature –
compensated, pressure sensing element, providing continuous hydrostatic level
measurement in non-pressurized or pressurized liquid environments. It is
suitable for all liquids compatible with SS316L stainless steel & is
designed for ruggedness & long life in the harshest environments.
1. Media Compatibility: MCOMHT-33MCOMHT-33 Liquids or gasses compatible with SS316L stainless steel
2. Overload pressure: the basic range of 2 times
3. Pressure Output:4~20 mA / RS485
4. Supply voltage: 12-34 VDC/230AC
5. Compensated temperature: 0~+70
6.
Working temperature -20~+85
7.
Accuracy ±0.05% FS
8.
Water level measurement: Measuring
Ranges 0...4m,10m ,20m ,40m,100m.
9.
Pressure resolution: 0.01% FS
10.
Long-term stability :±0.1% /year F
11.
Measuring ranges: 0.1 bar to 10 bar
12.
Output signal: 4-20 mA/RS485
13.
Adjustment: Zero and span internally
14.
Overall accuracy: 0.2% of adjusted
span, temperature compensated
15.
External load(max.): 550 Ohm/24 V to
1400 Ohm/40 V DC
16.
Protection grade: IP68 (cable/SS tube)
IP66(electr. housing)
17.
Process temperature: -10 degree Celsius
to +70 degree Celsius
18.
Temperature sensitivity: +/- 0,015%/K
19.
Wetted parts: 316L
SS
20.
Material cable: Polyethylene (PE)
21.
Measuring sensor: SS 316 with strong
diaphragm for long life & long term stability (<0.1%/year)
22. Type of protection Communication unit: IP54
23. Probe: IP68

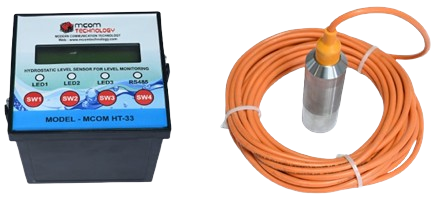

· MCOMHT-33 is a pressure sensor for hydrostatic level measurement.
·
Drinking water, dam water, bore well, well etc.
· Suitable for top mounting.
· Suitable for corrosive liquids.
