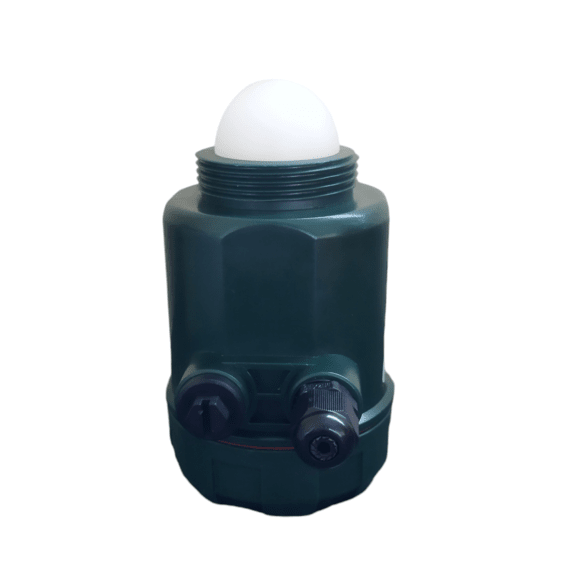

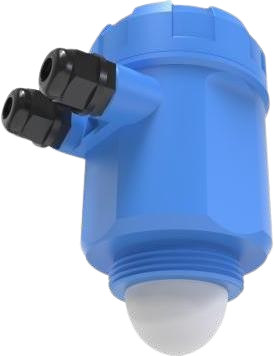

The MCOMRL is a high-performance 80 GHz
non-contact radar level transmitter designed for accurate level measurement in
open-channel flow, water/wastewater applications, rain basins, flumes, dams,
and liquid storage tanks. With its narrow beam angle (±3.5°), high accuracy
(±2–5 mm), and measuring range up to 10–50 meters, the MCOMRL provides stable
and precise readings even in challenging environments. It features a compact ABS+PP
construction, multiple output options (4–20 mA, RS485, Bluetooth, HART), IP67
protection, and a clear 128×64 LCD display, making it ideal for municipal,
industrial, and environmental monitoring applications.
· High Frequency 80 GHz, more focus.
· Accuracy ± 2 mm (liquid)
· Measuring range up to 30 m
· Small emitting angle ± 3.5°
· Thread connection, customized flange with display.
· Open channel water measurement
· Standard liquid
measurement
