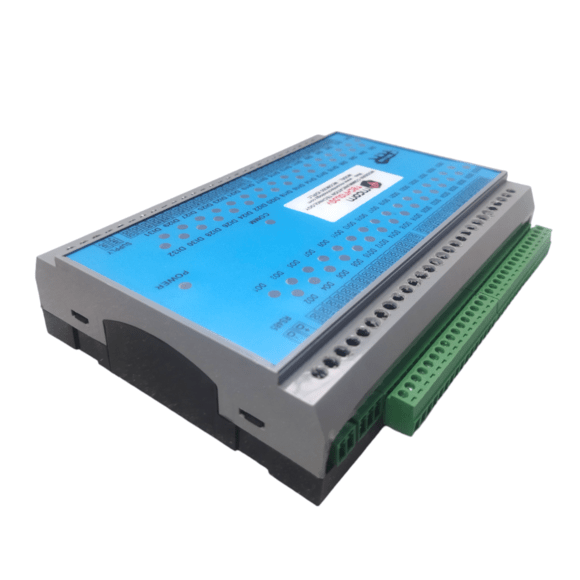

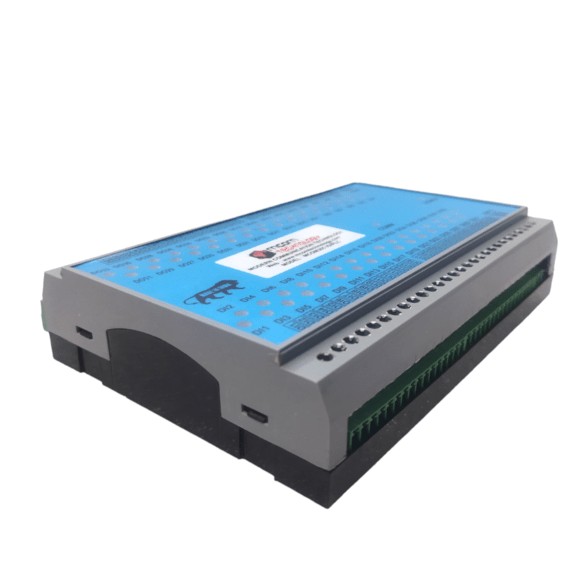

MCOM305IO

Model: MCOM305IO

Name: 32 CH IO CARD

Category: Remote IO Modules/Units

Discription:

The MCOM305IO provides 32 channels for digital input, 32 channels for digital output are 12 bit at ±10 V/ ±5 V/ 0 ~ 10 V/ 0 ~ 5 V /4 ~ 20mA, each of which features photocoupled isolation. The MCOM305IO supports source-type output, input is sink-type. Support RS485 Modbus RTU protocol for communication and work as slave device.

Download Brochure Get A Quote
  • Source-type Digital Outputs.
  • Sink-type Digital Inputs.
  • Photocoupler Isolation.
  • Watchdog.
  • Cost-effective.
  • Wide Operating Temperature Range: -25 °C ~ +75 °C.

Digital Input

Input Channels

32

Type

Wet Contact (Sink)

On Voltage Level

+12.0 VDC ~ 30 VDC

Off Voltage Level

+11 V max.

Input Impedance

10 K?, 0.66 W



Digital Output

Output Channels

32

Type

Open Collector (Source)

Max. Load Current

500 mA/channel

Load Voltage

+12 VDC ~ +30 VDC
  • Industrial Automation
  • Industrial Machinery
  • Building Automation
  • Food and Beverage Systems
  • Semiconductor Fabrication
  • Control Systems
