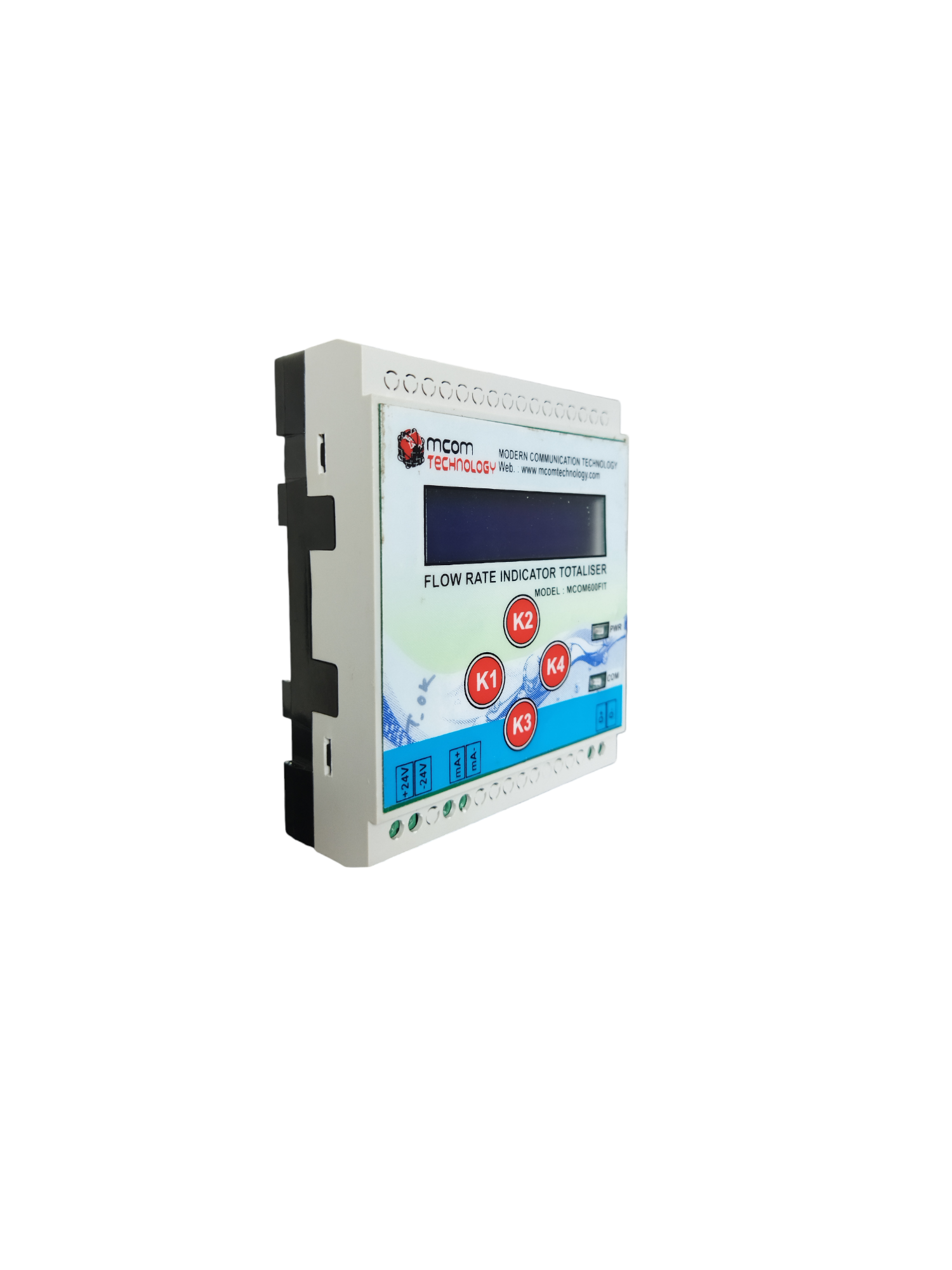

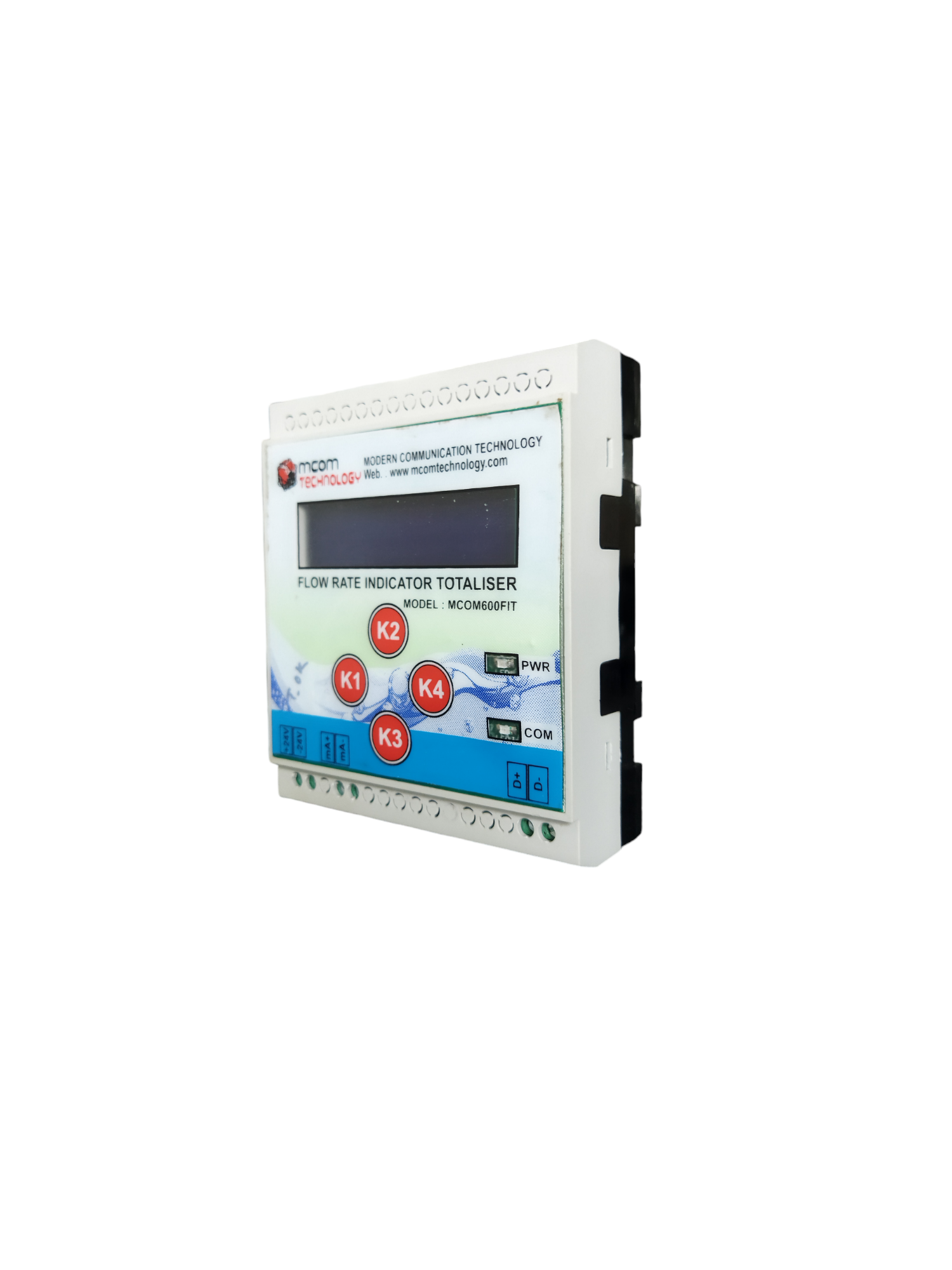

The MCOM600FIT is a microcontroller-based flow rate and totalizer
indicator designed for accurate and reliable real-time flow measurement. It
features a 16×2 LCD display, where the first line indicates total flow and the
second line displays the instantaneous flow rate. The device accepts a 4–20 mA
input signal from a flow sensor and converts it into a user-selectable
engineering unit such as M³/hr, Ltr/min, Ltr/sec, etc.
The MCOM600FIT allows users to configure both low and high range values,
enabling linear mapping of 4 mA to the selected low range and 20 mA to the
chosen high range. Total flow is displayed with a fixed 7-digit resolution,
ensuring precise cumulative measurement. Equipped with flexible parameter
settings, RS485 communication, flow batching support, and password-protected
programming, the MCOM600FIT offers a robust and user-friendly solution for
industrial flow monitoring applications.
· Advanced 16bit Microcontroller based design.
·
Easy user-interface through tactile keypad.
·
Flexibility in range change without
recalibration
·
User defined range and resolution of the
display.
·
Online data logging: through RS 485 with
parity checking.
·
Huge capacity of counter up to 9999999.999
units.
·
Flow batching facility available.
·
Password protection user programming
calibration & totalizer reset.
·
User selectable units for flow rate: M3/Hr,
Ltr/Min, Ltr/Sec etc.
· Serial Communication
|
Interface standard and protocol |
RS485 |
|
Communication address |
1 TO 255 |
|
Transmission mode |
Half duplex |
|
Transmission distance |
1000m for RS485 |
|
Transmission speed |
2400, 9600,19200 (in bps) |
|
Data type |
Integer, Float, Hex |
|
Parity |
None, Odd, Even |
|
Stop bit |
1 or 2 |
|
Response time |
1000ms |
· Performance
Parameters
|
Operating Temperature |
-25 to 85°C |
|
Storage Temperature |
-40 to 85°C |
|
Humidity |
5 to 95% RH |
|
Input Voltage |
10 to 40 VDC |
|
Power Consumption |
Idle: 100 mA @ 12 V, Data Link: 500 to 1000 mA (peak) @ 12V |
|
Dimension (L x W x H) |
110 X 94 X 35 mm |
|
INPUT(mA) |
4 to 20 mA |
