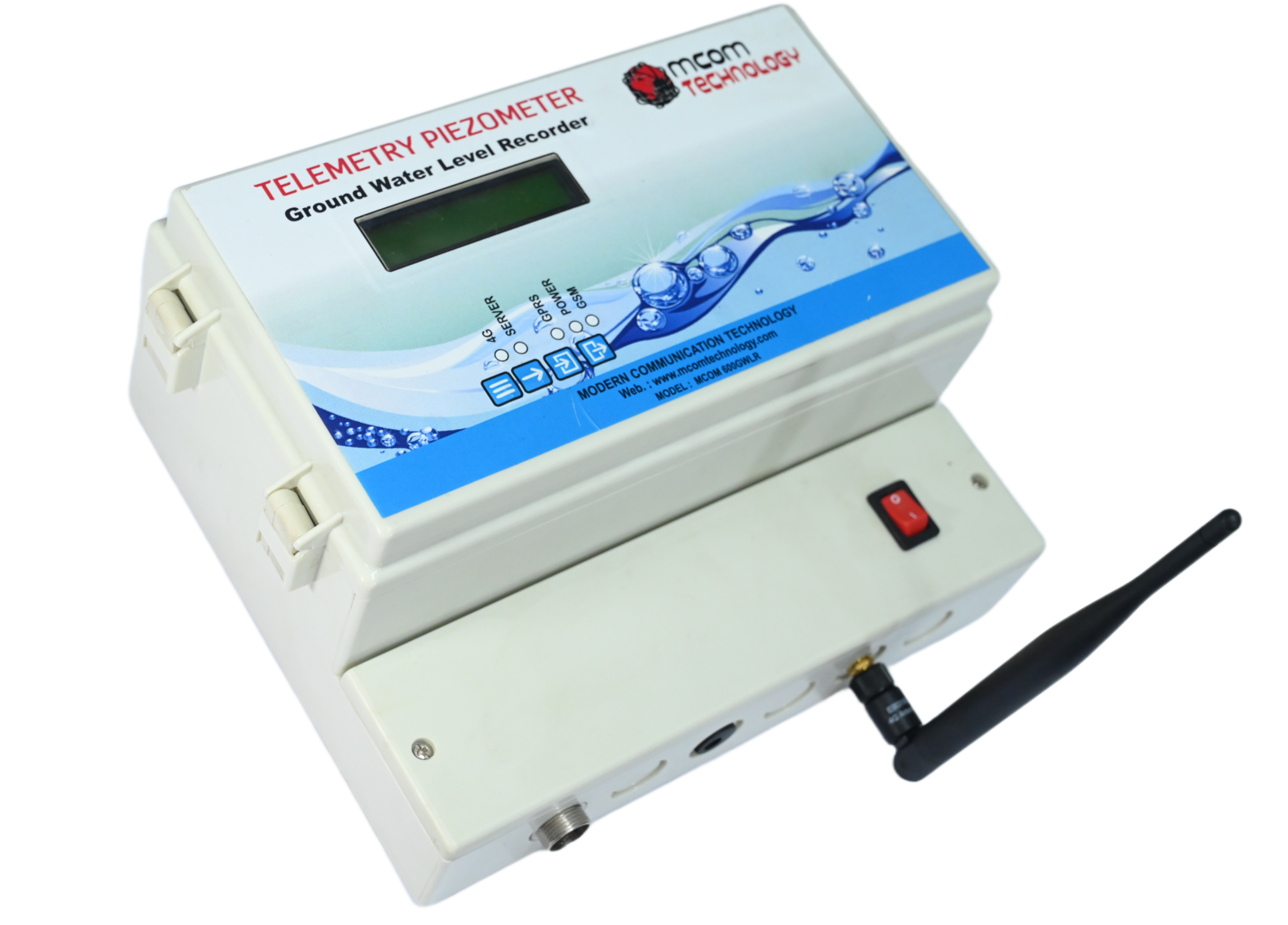

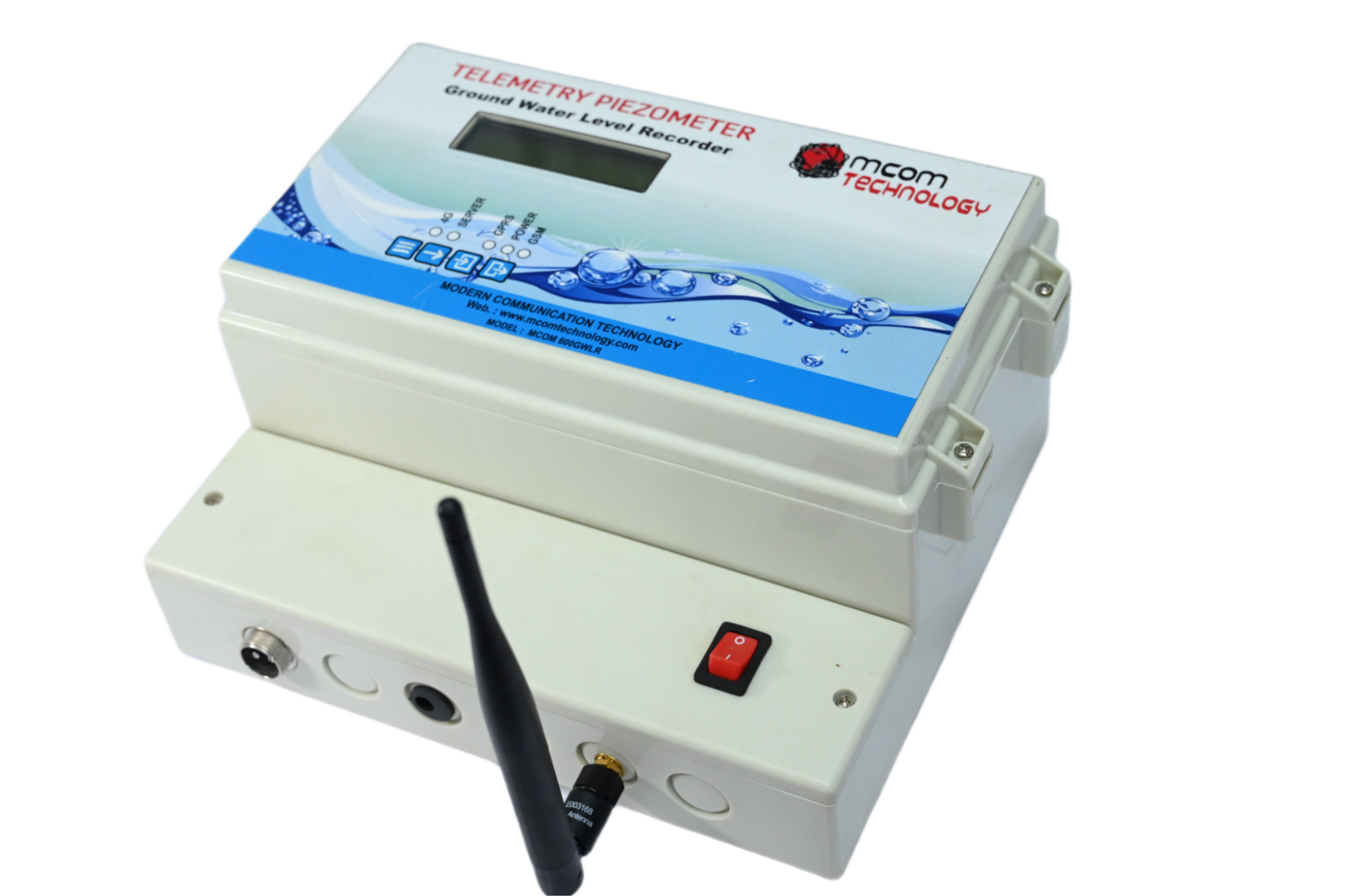

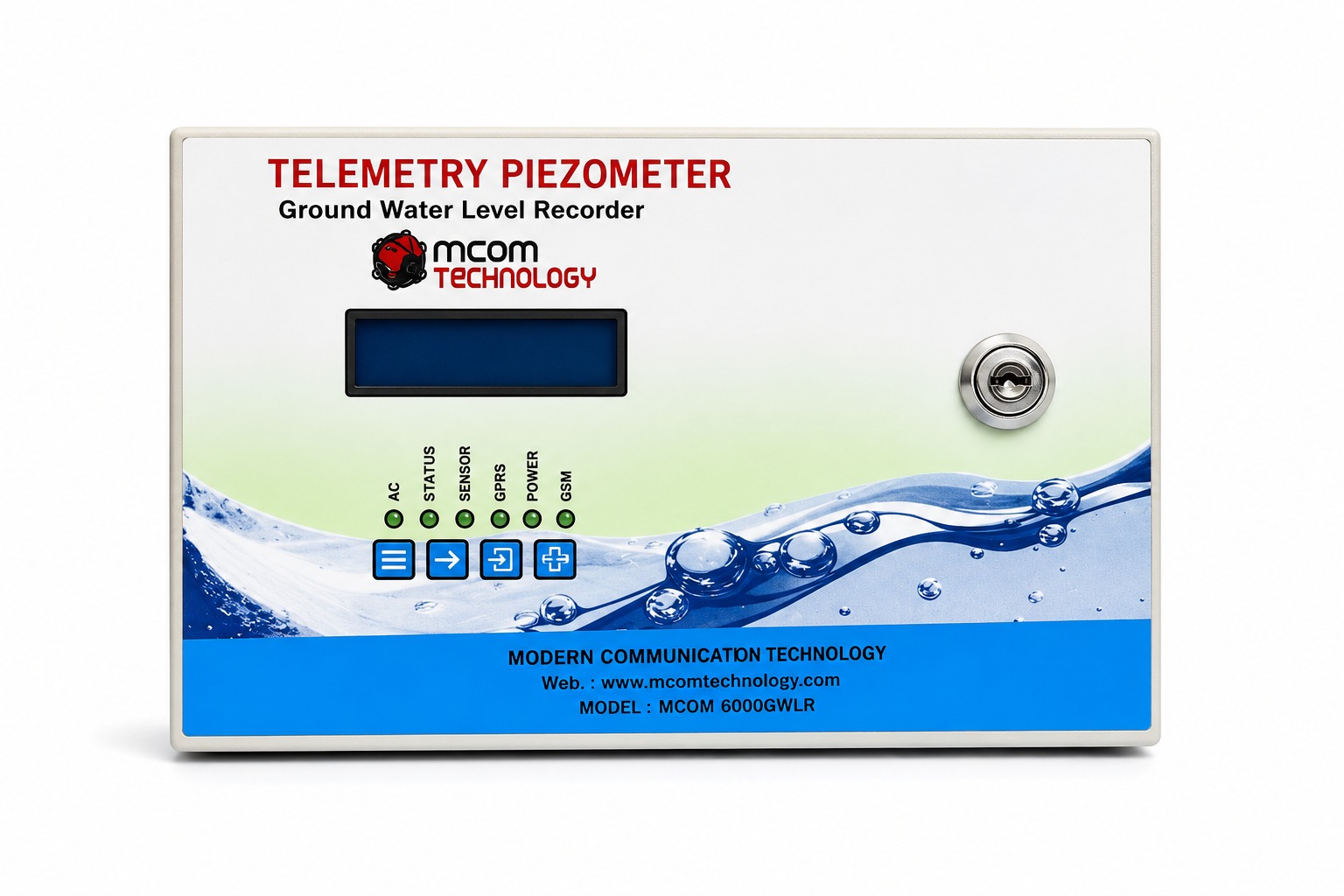

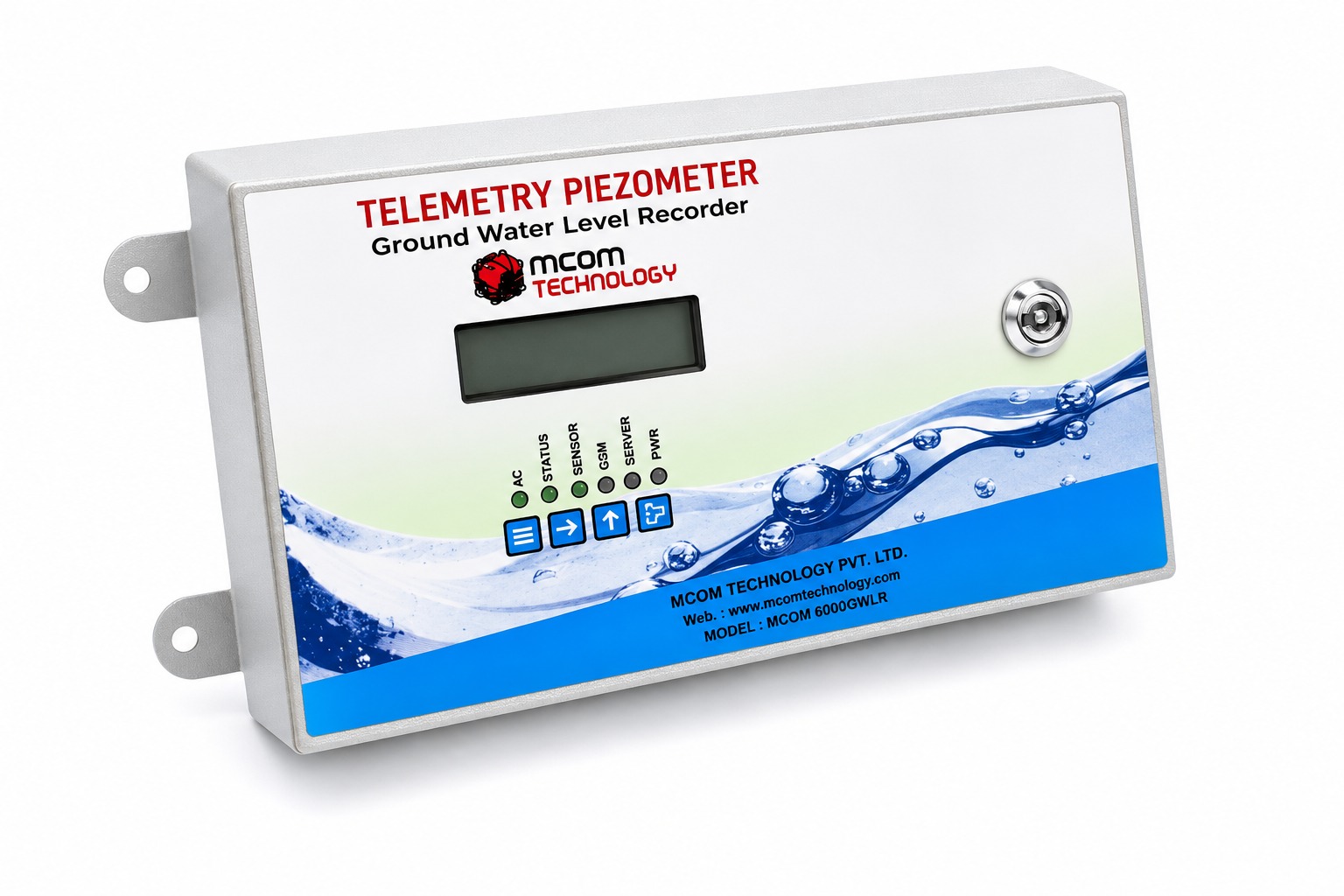

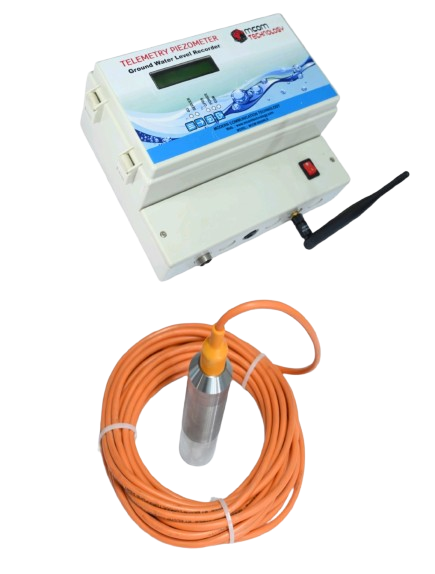

MCOM600GWLR is a high-precision Ground Water
Level Recorder (GWLR) that combines a submersible pressure transducer with a
data logger for remote monitoring of water levels. The unit records water level
fluctuations, stores up to one year of data, and transmits information to a
server via GPRS/4G/3G/2G. Designed for industrial, agricultural, and
environmental applications, it features robust SS316L construction, IP68
protection for the probe, optional solar-powered operation, and long-term
stable performance for accurate and reliable water level monitoring.
1.
Supports
all types of 4G SIM cards.
2.
The
data transmission mode is 4G/3G/2G (auto-switchable).
3.
Supports
all types of M2M SIMs.
4.
Small
antennae included with the device. High gain antennae optional, in case of low
connectivity.
5.
One
Serial Port for RS232 or RS485 for external device interface.
6.
Five
LED indicators provide status for power, server connection, GPRS connection,
SIM registration or network, 4G
indication
7.
Media
compatibility: Liquids or gasses compatible with SS316L stainless steel
8.
Overload
pressure: the basic range of 2 times
9.
Pressure
Output: 4~20 mA/ RS485.
10. Accuracy ±0.05% FS
11. Water level measurement: Measuring Ranges
0...4m, 10m, 20m, 40m, and 100m.
12. Pressure resolution: 0.01% FS
13. Output signal: 4-20 mA/RS485
14. Adjustment: Zero and span internally
15. Overall accuracy: 0.2% of adjusted span,
temperature compensated
16. External load(max.): 550 Ohm/24 V to 1400
Ohm/40 V DC
17. Protection grade: IP68 (cable/SS tube) IP66 (electr.
housing)
18. Process temperature: -10 degree Celsius to
+70 degree Celsius
19. Temperature sensitivity: +/- 0,015%/K
20. Wetted parts:
316L SS
21. Material cable: Polyethylene (PE)
22. Measuring sensor: SS 316 with strong
diaphragm for long life & long term stability (<0.1%/year)
23. Type of protection Communication unit: IP54
24. Probe: IP68
1. Industrial Water Level
Monitoring
2. Agricultural bores
3. Ground Water Elevations.
4. Wells
