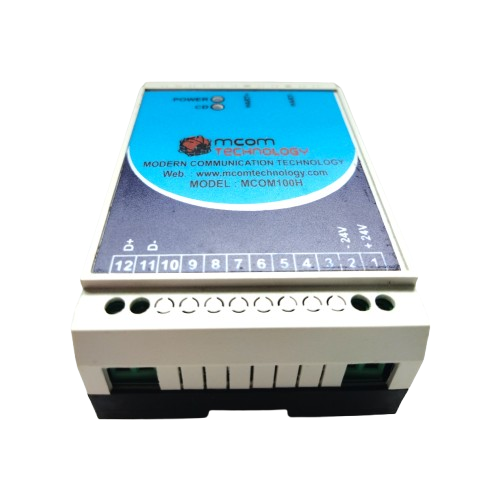

The MCOM100H is an industrial HART-to-MODBUS protocol converter designed
to interface with up to 15 HART slave devices and convert their standard
process variables into fixed MODBUS registers. It enables accurate digital
retrieval of flow, pressure, temperature, and other transmitter values directly
in the control room, eliminating the errors associated with analog signal
acquisition.
The device offers user-selectable baud rate
settings through DIP switches and provides LED indicators for master and slave
communication, ensuring quick diagnostics and simplified integration into
automation systems.
·
Relatively
easy to understand and use, the HART protocol provides access to the wealth of
additional information (variables, diagnostics, calibration, etc.)
·
HART is
a no risk solution for enhanced field communication
·
Compatibility
with standard 4-20mA wiring
·
Simultaneous
transmission of digital data
·
Risk
reduction through a highly accurate and robust protocol
·
Increase
plant availability
·
Reduce
maintenance costs
·
Improve
regulatory compliance
·
Support
HART short/long frame
·
Support
Modbus RTU format
·
Support
Modbus slave mode
·
COM 1:
RS-232/422/485
·
Provide
LED indicators
·
Built-in
watchdog
·
Mountable
on DIN rail
·
Supply:
24 VDC
·
Communication:
Rs485 for master side HART on slave side.
·
Communication
settings: 9600 baud rate.
·
No. of
slaves: 15 HART slave units
·
MODBUS
RTU
·
On
MODBUS RTU (Master) MCOM100H gives floating point value of current, primary,
secondary, third & forth variables.
·
Engineering
units for 4 variables & device information like device ID, MFR's code, hardware,
software version etc. for HART slave units. (Maximum 15).
·
HART
slave status indication in MODBUS registers.
· Industrial
Automation
· Industrial
Machinery
· Building
Automation
· Food
& Beverage systems
· Semiconductor
fabrication
· Control
systems
