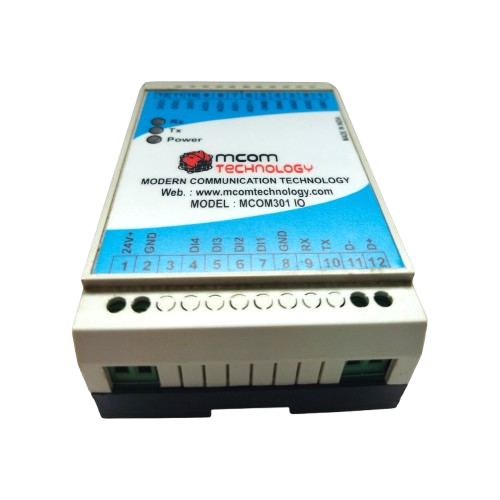

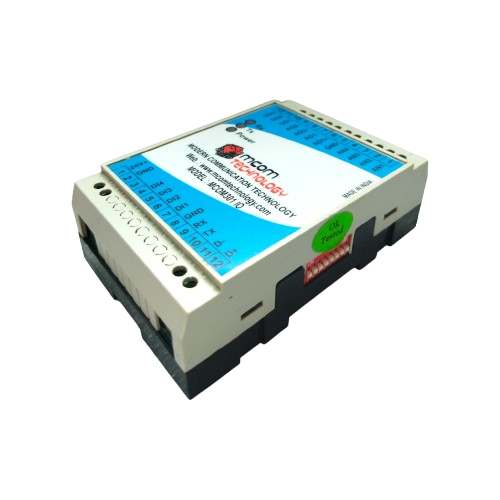

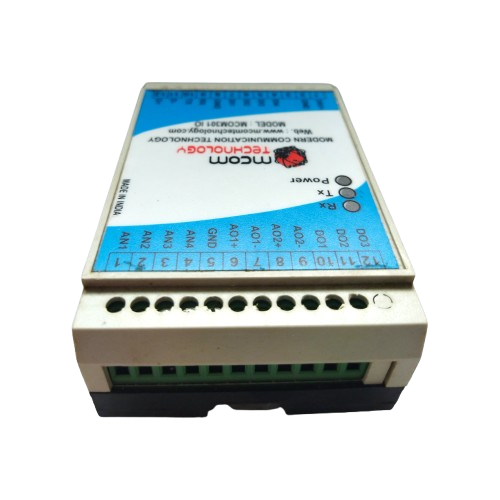

The MCOM300IO provides 8 channels for digital
input, 8 channels for digital output and 8 channels for
Analog input,analog
outputs are 12 bit at ±10 V/ ±5 V/ 0 ~ 10 V/ 0 ~ 5 V /4 ~ 20mA, each of which features
photocouple isolation. The MCOM300IO supports
source-type output, input is sink-type. Support RS485
Modbus RTUprotocol for communication and work as
slave device. Provide DIP switch for modbus
device id
and
Baud rate selection.
|
||||||||||||||||||||||||||
|
Analog Input |
||||||||||||||||||||||||||
|
Input Channels |
4 Single-ended |
|||||||||||||||||||||||||
|
Type |
0 ~ 500 mV/ 0 ~ 1 V/ 0 ~ 2.5 V/ 0 ~ 5 V/ 0 ~
10 V/ 0 ~ 20 mA/ 4 ~ 20 mA |
|||||||||||||||||||||||||
|
Resolution |
12-bit |
|||||||||||||||||||||||||
|
Sampling Rate |
100 Hz total |
|||||||||||||||||||||||||
|
Accuracy |
+/-0.1% |
|||||||||||||||||||||||||
|
Zero Drift |
+/- 20 ?V/°C |
|||||||||||||||||||||||||
|
Span Drift |
+/- 25 ppm/°C |
|||||||||||||||||||||||||
|
Input Impedance |
Voltage |
10 M? |
||||||||||||||||||||||||
|
Current |
100 ? |
|||||||||||||||||||||||||
|
Overvoltage Protection |
120 VDC |
|||||||||||||||||||||||||
|
Open Wire Detection for 4 ~ 20 mA |
Yes |
|||||||||||||||||||||||||
|
Analog Output |
|
||||||||||||||||||||||||
|
Channels |
2 |
|
|||||||||||||||||||||||
|
Type |
±10 V/ ±5 V/ 0 ~ 10 V/ 0 ~ 5 V/4 ~ 20 mA (per
Select) |
|
|||||||||||||||||||||||
|
Resolution |
12-bit |
|
|||||||||||||||||||||||
|
Accuracy |
+/-0.2% of FSR |
|
|||||||||||||||||||||||
|
Voltage Output Capability |
10 V @ 20 mA |
|
|||||||||||||||||||||||
|
Communication |
|
|
Interface |
RS-485 |
|
Format |
(N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1) |
|
Baud Rate |
1200 ~ 115200 bps |
|
Protocol |
Modbus/RTU |
|
Watchdog |
Yes |
|
LED Indicators |
|
|
Power |
1 LED as Power Indicator |
|
RX |
1 LED for commination |
|
TX 1LED for commination |
|
|
Power Requirements |
|
|
Reverse Polarity Protection |
Yes |
|
Powered from Terminal Block |
Yes, 12 ~ 30 VDC |
|
Consumption |
0.5 W Max. |
|
Mechanical |
|
|
Dimensions (W x L x H) |
52 mm x 98 mm x 27 mm |
|
Installation |
DIN-Rail Mounting |
|
Environment |
|
|
Operating Temperature |
-25 °C ~ +75 °C |
|
Storage Temperature |
-30 °C ~ +75 °C |
|
Humidity |
10 ~ 95% RH, Non-condensing |
