MCOM
lunches a series of remote I/O unit for industrial monitoring and controlling
applications. With the auto configuration and hot swap features, the unit can
eliminate your nightmare of extensive labour on the set-up and maintenance of
the automation system.
The
available I/O modules are also highly flexible and compatible for every kind of
application to reduce your inventory of different types of I/O modules.
Furthermore, there are various communication interface and protocols for choice
in various remote I/O applications.

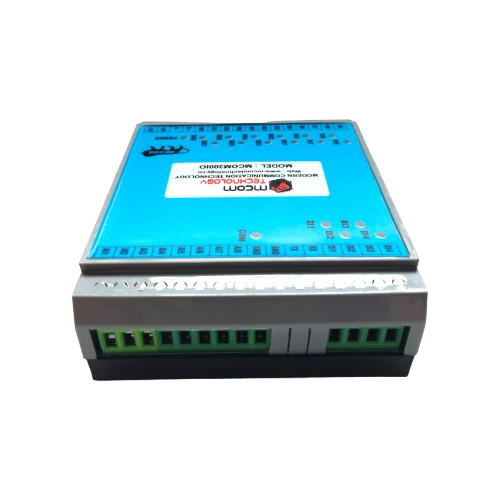

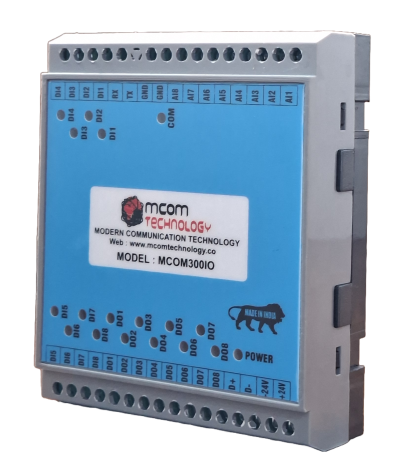

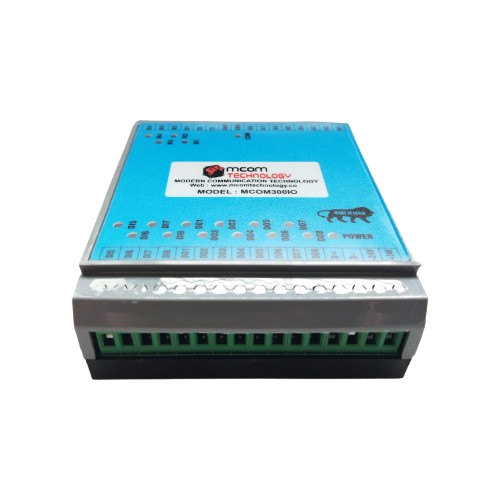

The
MCOM300IO is a compact industrial-grade I/O expansion module designed for PLC,
SCADA, and Industrial Automation applications. It provides 8 Digital Inputs, 8
Digital Outputs, and 8 Analog Inputs, making it ideal for process monitoring, machine
automation, and remote I/O expansion.
With
opto-isolated inputs, high-current transistor outputs, and selectable current
analog inputs, this module ensures reliable operation in harsh industrial
environments. LED indicators for each channel allow easy status monitoring, and
optional RS485 Modbus RTU communication enables seamless integration with PLCs
and SCADA systems.
|
Digital Input |
||
|
Input Channels |
8 |
|
|
Type |
Wet Contact (Sink) |
|
|
On Voltage Level |
+12.0 VDC ~ 30 VDC |
|
|
Off Voltage Level |
+11 V max. |
|
|
Input Impedance |
10 K?, 0.66 W |
|
|
|
||
|
Digital Output |
||
|
Output Channels |
8 |
|
|
Type |
Open Collector (Source) |
|
|
Max. Load Current |
500 mA/channel |
|
|
Load Voltage |
+12 VDC ~ +30 VDC |
|
|
|
||
|
Analog Intput |
||
|
Intput Channels |
8 |
|
|
Type |
0 ~ 500 mV/ 0 ~ 1 V/ 0 ~ 2.5 V/ 0 ~ 5 V/ 0 ~ 10 V/ 0 ~ 20 mA/ 4 ~ 20
mA |
|
|
Resolution |
12-bit |
|
|
Sampling
Rate |
100
Hz total |
|
|
Accuracy |
+/-0.1% |
|
|
Zero
Drift |
+/-
20 ?V/°C |
|
|
Span
Drift |
+/- 25 ppm/°C |
|
|
Input
Impedance |
Voltage |
10
M? |
|
|
Current |
100
? |
|
Open
Wire Detection for 4 ~ 20 mA |
Yes |
|
