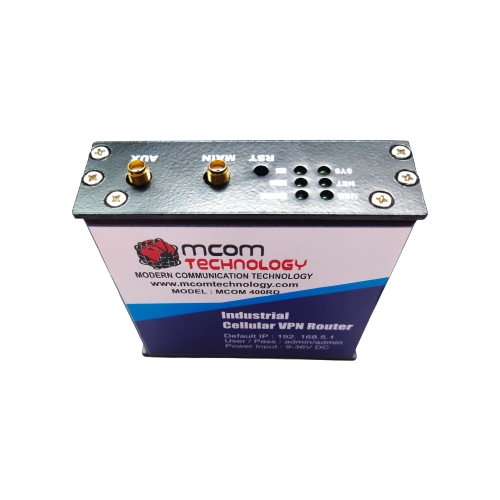

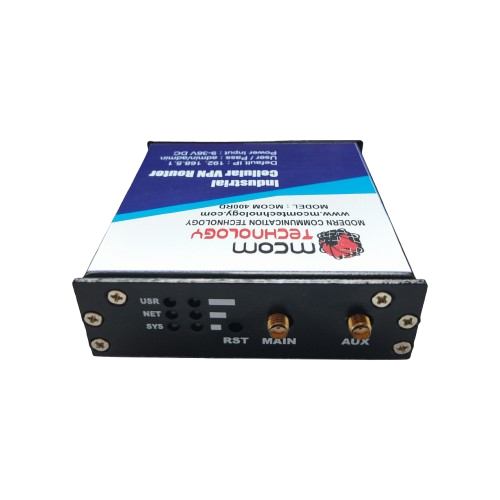

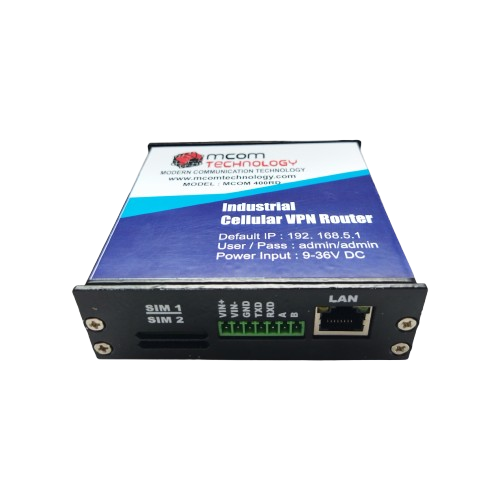

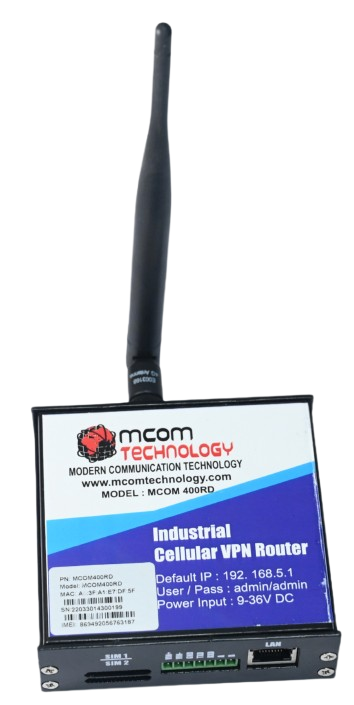

The MCOM400RD is a compact and industrial-grade LTE Cat 4 Gateway Router
designed to deliver reliable and secure internet connectivity for a wide range
of automation and remote-access applications. Equipped with a dual SIM
interface, Ethernet port, digital I/O, and a micro-USB port, it ensures
continuous communication even in demanding industrial environments.
Its rugged design is supported by advanced software capabilities such as
Firewall, Open VPN, IPsec, RMS, and FOTA, making it ideal for seamless remote
access and monitoring of PLCs, HMIs, PCs, and other industrial devices.
|
MOBILE |
||
|
Mobile module |
4G (LTE) – Cat 4 up to
150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
|
|
Bridge |
Direct connection
(bridge) between mobile ISP and device on LAN |
|
|
Status |
Signal strength (RSSI),
SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received |
|
|
ETHERNET |
||
|
LAN |
1 x RJ45 port,
10/100/1000 Mbps, supports auto MDI/MDIX |
|
|
NETWORK |
||
|
Network protocols |
TCP, UDP, IPv4, IPv6,
ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, MQTT, Wake on LAN (WOL) |
|
|
Routing |
Static routing |
|
|
Connection monitoring |
Ping Reboot, Periodic
Reboot, LCP and ICMP for link inspection, Wget |
|
|
Firewall |
Port forwards, traffic
rules, custom rules |
|
|
DHCP |
Static and dynamic IP
allocation |
|
|
DDNS |
Supported >25 service
providers, others can be configured manually |
|
|
SECURITY |
||
|
Authentication |
Pre-shared key, digital
certificates, X.509 certificates |
|
|
Firewall |
Pre-configured firewall
rules can be enabled via the WebUI, unlimited firewall configuration via CLI;
NAT; NAT-T |
|
|
Access control |
Flexible access control
of TCP, UDP, ICMP packets, MAC address filter |
|
|
VPN |
||
|
Open VPN |
Multiple clients and a
server can run simultaneously, 12 encryption methods |
|
|
Open VPN Encryption |
DES-CBC, RC2-CBC,
DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC,
RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
|
|
IPsec |
IKEv1, IKEv2, supports up
to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES,
AES128, AES192, AES256) |
|
|
GRE |
GRE tunnel |
|
|
PPTP, L2TP |
Client/Server services
can run simultaneously |
|
|
MONITORING &
MANAGEMENT |
||
|
WEB UI |
HTTP/HTTPS, status,
configuration, FW update, CLI, troubleshoot, system log, kernel log |
|
|
FOTA |
Firmware update from
sever, automatic notification |
|
|
SSH |
SSH (v1, v2) |
|
|
MQTT |
MQTT Broker, MQTT
publisher |
|
|
JSON-RPC |
Management API over HTTP/HTTPS |
|
|
Modbus |
Modbus TCP status/control |
|
|
RMS |
MCom Remote Management
System (RMS) |
|
|
SYSTEM CHARACTERISTICS |
||
|
CPU |
ARM Cortex-A7 1.2 GHz CPU |
|
|
RAM |
128 MB (50 MB available
for userspace) |
|
|
FLASH memory |
512 MB (70 MB available
for userspace) |
|
|
FIRMWARE / CONFIGURATION |
||
|
WEB UI |
Update FW from file,
check FW on server, configuration profiles, configuration backup, restore
point |
|
|
FOTA |
Update FW/configuration
from server |
|
|
RMS |
Update FW/configuration
for multiple devices |
|
|
Keep settings |
Update FW without losing
current configuration |
|
|
FIRMWARE CUSTOMIZATION |
||
|
Operating system |
RutOS (OpenLinux based
Linux OS) |
|
|
Supported languages |
Busybox shell, Lua, C,
C++ |
|
|
Development tools |
SDK package with build
environment provided |
|
|
INPUT/OUTPUT |
||
|
Configurable I/O |
2 x Configurable Digital
Inputs/Outputs |
|
|
Events |
SMS status |
|
|
POWER |
||
|
Connector |
4 pin industrial DC power
socket |
|
|
Input voltage range |
9 – 30 VDC (4-pin
industrial socket), reverse polarity protection, surge protection > 33
VDC, 10 max |
|
|
Power consumption |
< 5 W |
|
|
OPERATING ENVIRONMENT |
||
|
Operating temperature |
-40 °C to 75 °C |
|
|
Operating humidity |
10 % to 90 %
non-condensing |
|
|
Ingress Protection Rating |
IP30 |
|
|
REGULATORY & TYPE
APPROVALS |
||
|
Regulatory |
CE |
|
|
PHYSICAL INTERFACES
(PORTS, LEDS, ANTENNAS, BUTTONS, SIM) |
||
|
Ethernet |
1 x RJ45 port,
10/100/1000 Mbps |
|
|
I/Os |
2 x Configurable Digital
Inputs/Outputs on 4 pin power connector |
|
|
USB |
Virtual network interface
via USB |
|
|
Status LEDs |
3 x connection type
status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LED |
|
|
SIM |
2 x SIM slot (Mini SIM –
2FF), 1.8 V/3 V |
|
|
Power |
4 pin DC connector with 2
x configurable Digital Inputs/Outputs |
|
|
Antenna |
1 x SMA for LTE |
|
|
Reset |
Restore factory settings
button |
|
|
PHYSICAL SPECIFICATIONS |
||
|
Casing material |
ABS housing |
|
|
Dimensions |
65 mm x 72 mm x 20 mm (H
x W x L) |
|
|
Weight |
350 g |
|
|
Mounting options |
DIN rail |
|
