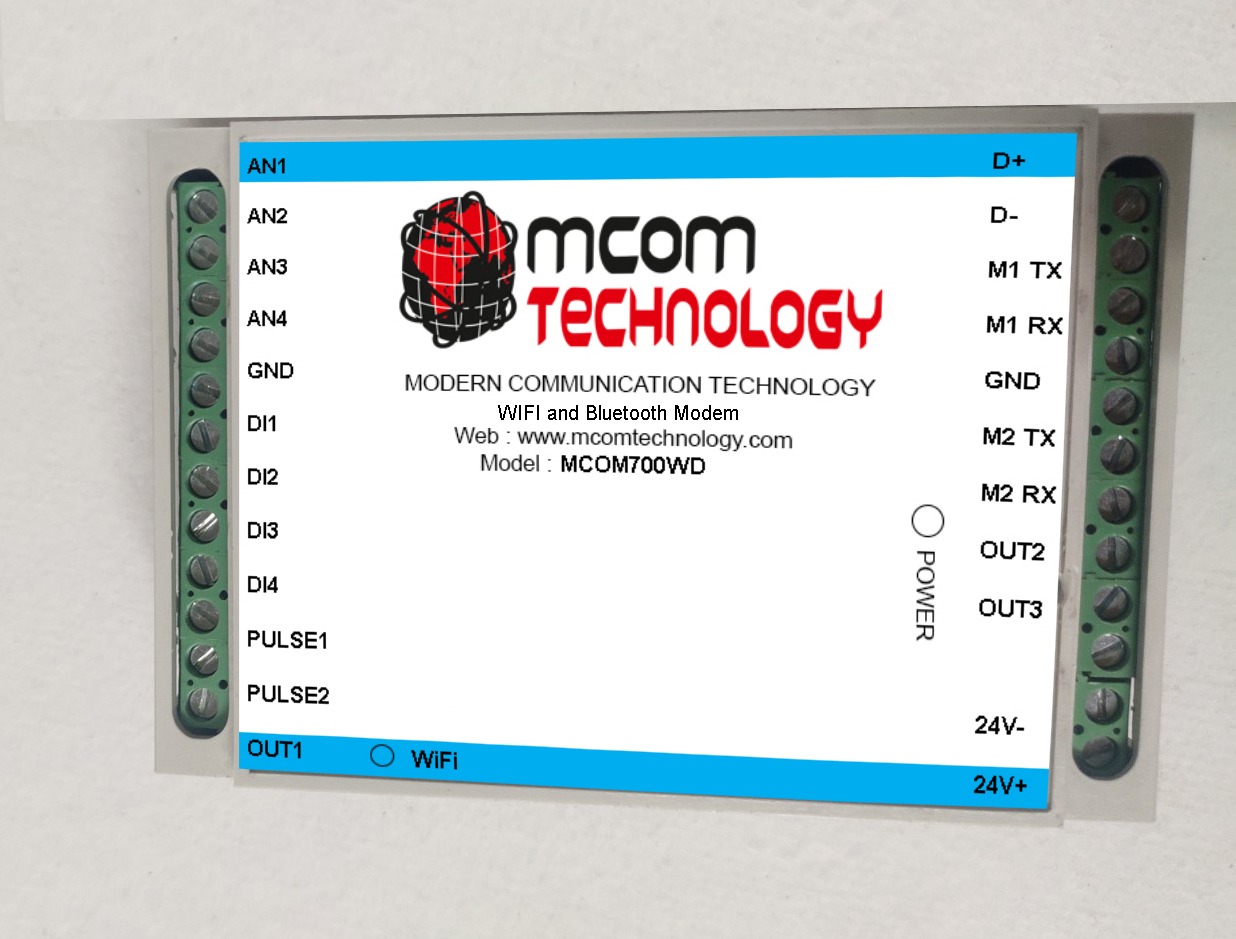

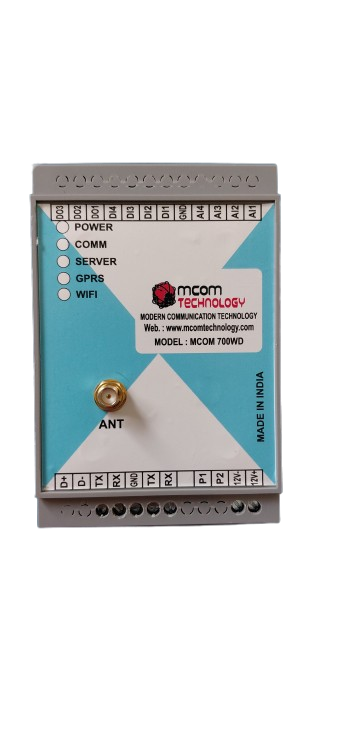

The MCOM700WD is a wireless Wi-Fi modem
designed for reliable data communication in industrial applications. It
supports a 2.4–2.5 GHz wireless interface, along with RS-232/RS-485 communication,
4 digital inputs, 4 analog inputs, and 2 digital outputs. The modem operates in
both transparent and intelligent modes, allowing it to receive and buffer
sensor data wirelessly, while also enabling users to read sensor values through
MODBUS RTU commands. With support for 16 wireless channels and 8 group IDs, the
MCOM700WD offers easy configuration and efficient wireless network management
through the serial interface.
·
2.4 GHz Radio Frequency
·
16 RF Channels
·
One RS-232/RS-485 4 Digital Input, 4 Analog Inputs
And 2 Digital Output ports
·
Supported MODBUS RTU protocol (Master/Slave)
·
Supported data buffers of sensors
·
ESD Protection: +/- 4 kV for contact terminal
· DIN-Rail Mountable
· Operating Temperatures: -25 °C ~ +75 °C
·
RF INTERFACE
|
Radio frequency |
2.4 - 2.5 GHz |
|
RF channel |
0 to 15 (configured by serial port) |
|
Transmission power |
9±1dBm (PA Off) / 18±1dBm (PA On) |
|
Transmission distance |
100m (Line of sign, LoS) |
