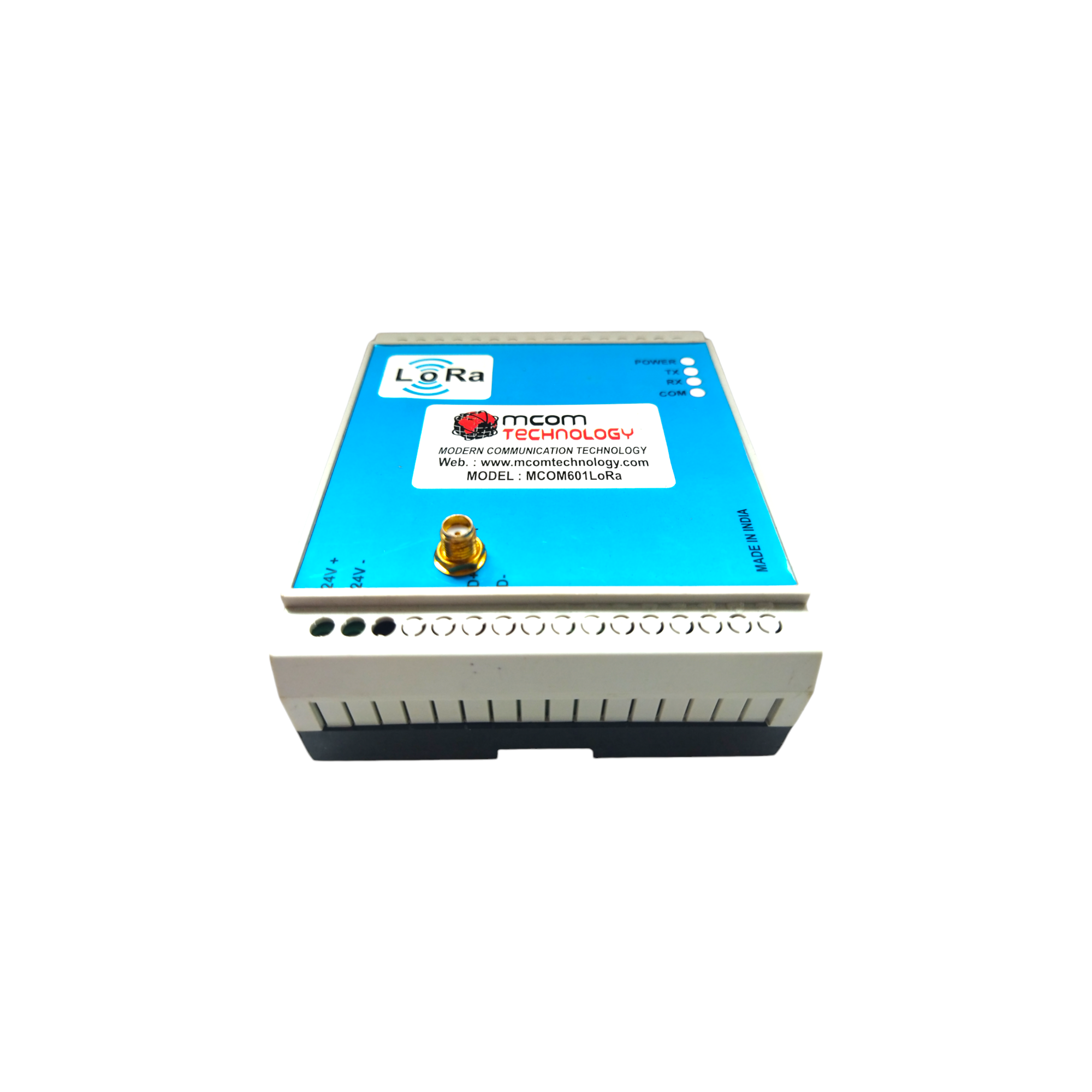

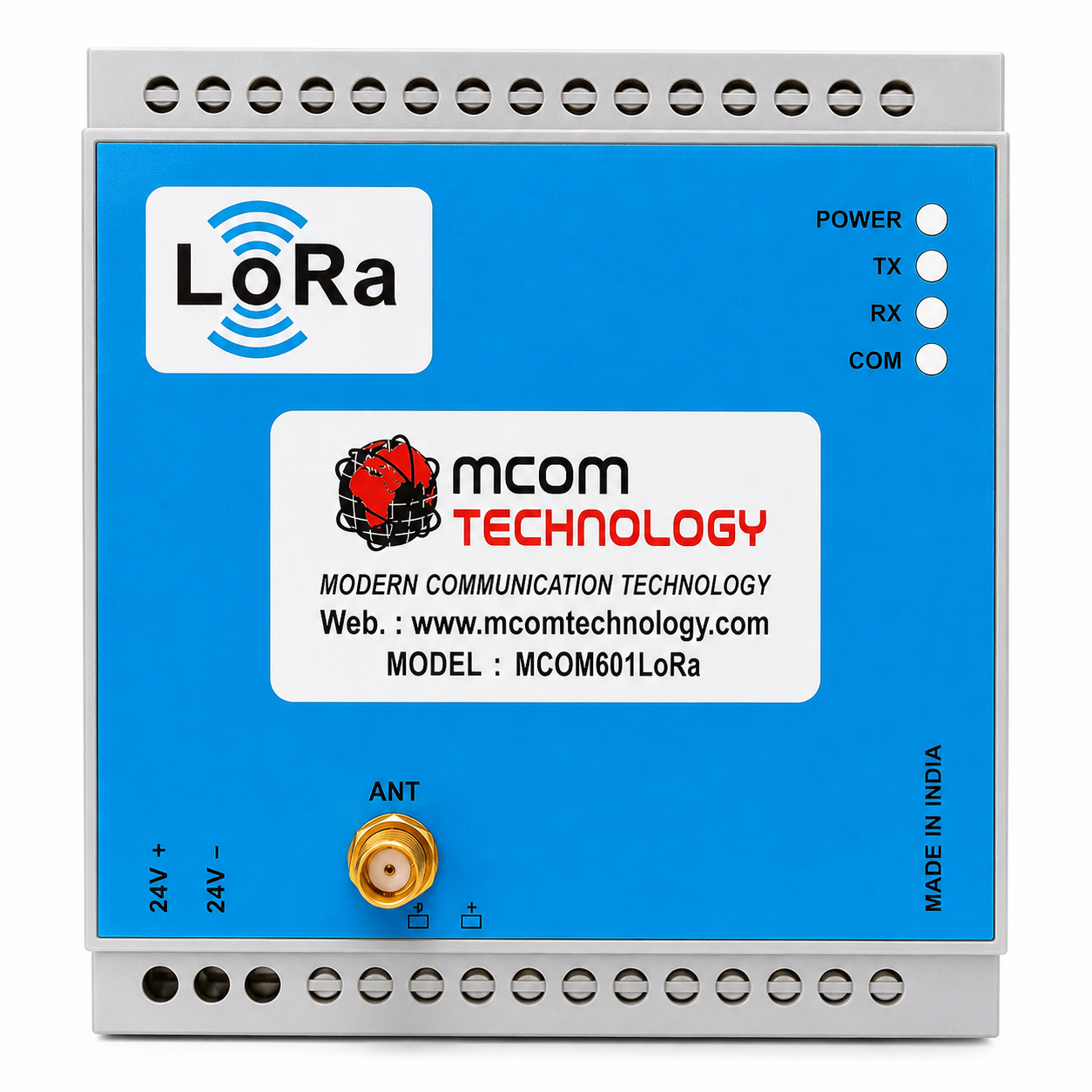

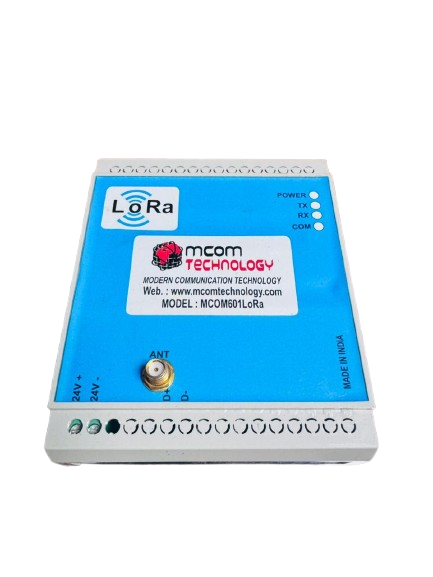

The MCOM601LoRa is a LoRa
based wireless modem with RS-232/RS-485 and 2 digital inputs, 1 digital output.
MCOM601LoRa is an updated model of MCOM600RF. It runs of frequency band 868 mhz radio that
can be used to convert data from an RS-232/RS-485 device to an LoRa message
that can then be transmitted in transparent mode as well as intelligent mode
via the 868 mhz ISM frequency band.
The MCOM601LoRa provides a maximum line of sight (LOS) transmission distance of 2000
meters (2 km) at a LoRa baud rate of 9600 bps. In order to overcome the
interference that may be encountered in harsh environments, the MCOM601LoRa allows the LoRa transmission baud rate to be
configured to a minimum of 650 bps, enhancing the capability of the modem to
resist noise and other interference. The majority of these configuration
parameters can be adjusted using a serial port, thereby providing a simple
method of maintaining the system if the modem needs to be replaced.
·
LoRa Interface
|
Radio frequency
|
868
MHz to 915 MHz |
|
Baud rate |
115200 bps,
38400 bps, 19200 bps, 650 bps |
|
Transmission
power |
19dB |
|
Transmission
distance (LoS) |
2000 m ( at 19200
bps RF Rate) |
|
Protocols |
Transparent
& intelligent transmit |
|
Temporary
buffer size |
512 Bytes |
|
Configuration
|
Serial port |
·
Long range system
·
Meter reading
·
Wireless data collection
·
Automobile security system
·
Home automation and security system
· Industrial automation
· Pump automation
