MCOM400TIRTU

Model: MCOM400TIRTU

Name: 4G MODEM

Category: Cellular IoT Gateway

Discription:

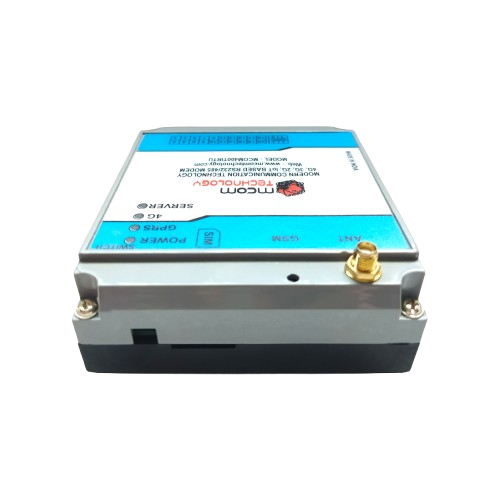

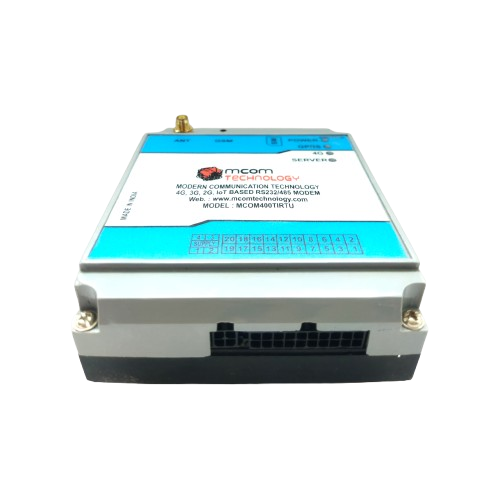

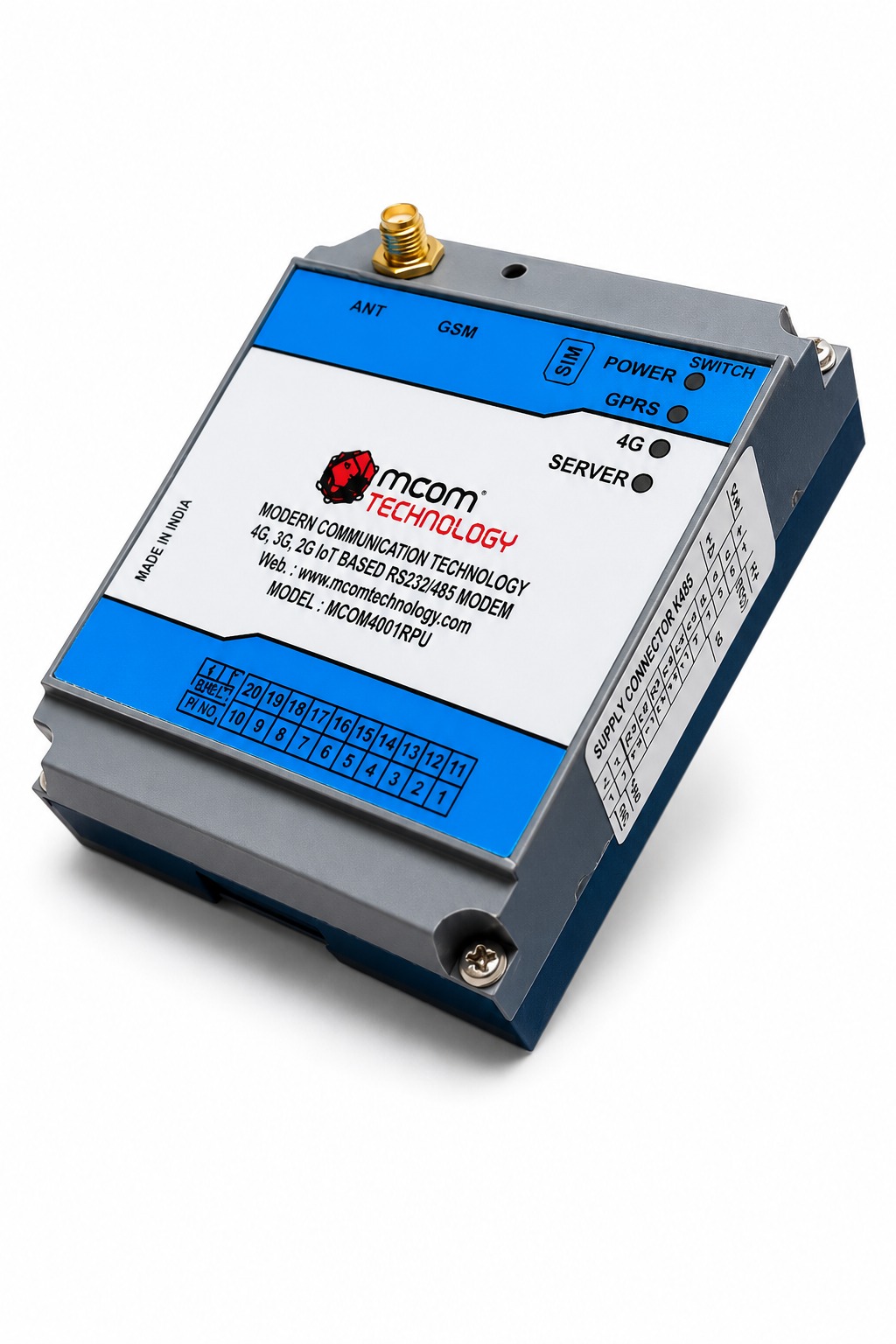

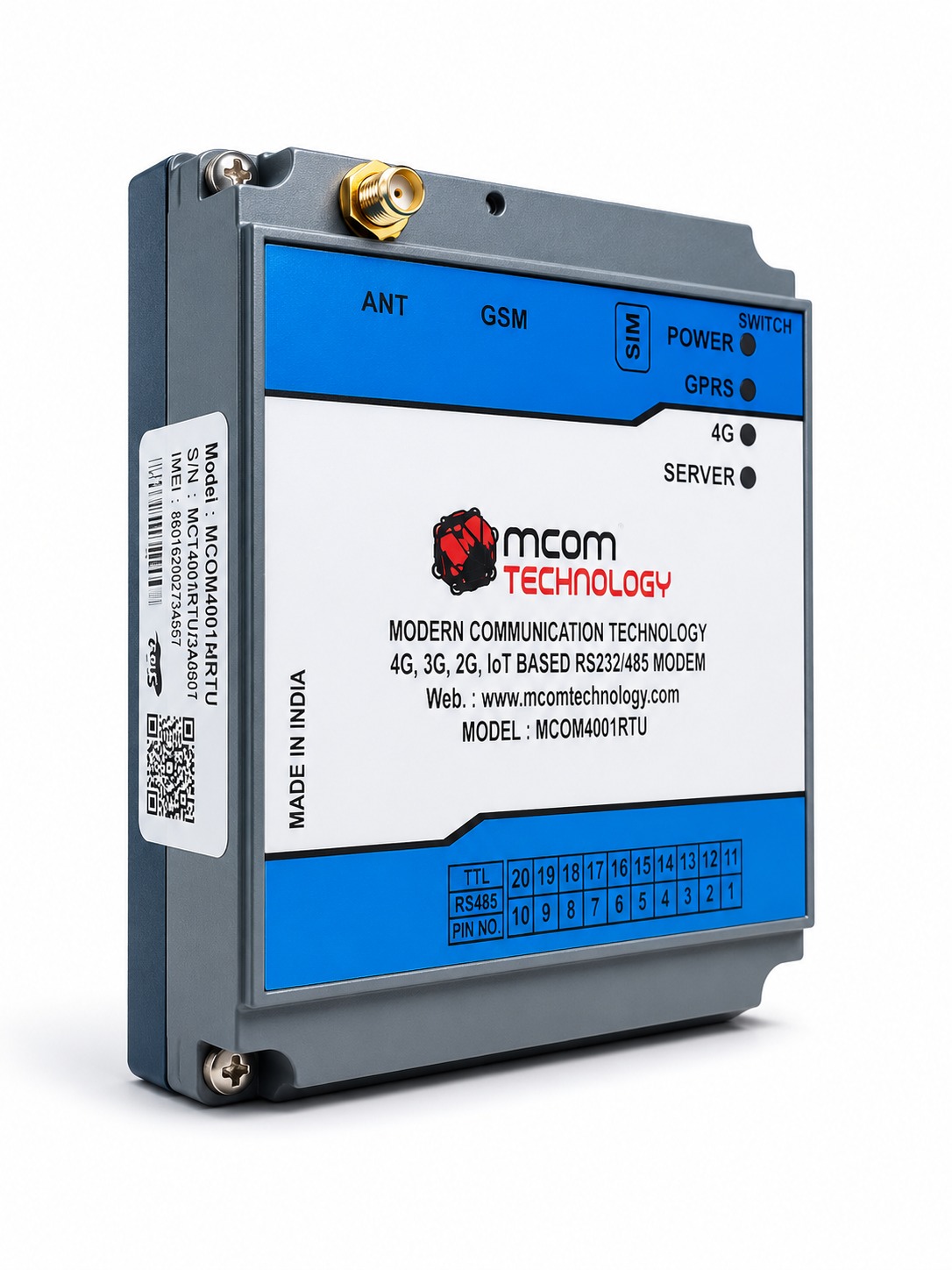

MCOM’s industrial modem range provides simple, secure, and cost-effective connectivity for machine-to-machine (M2M) and Industrial IoT (IIoT) applications. Supporting 4G LTE Cat-1, 3G, and 2G networks, these compact devices deliver dependable data transmission in challenging environments. MCOM400TIRTU is a rugged cellular MODEM offering state-of-the-art mobile connectivity for machine to machine (M2M) applications. It works in transparent mode. This device is suitable for data monitoring and operation from remote device, and for remote PLC or any MODBUS communication via serial port. The minimum data rate from remote to central server is 1 sec.

Download Brochure Get A Quote

  •      Supports all types of 4G SIM cards.
  •      The data trnasmission mode is 4G/3G/2G. (Auto - switcheable)
  •      Supports all types of M2M SIMs.
  •      Small antenna included with the device. High gain antenna optional, in case of low connectivity.
  •      One serial port for RS232 or RS485 for external device interface.
  •      Five LED indicators provides status for power, server connection, GPRS connection, SIM registration or network, 4G indication.

Ø CELLULAR INTERFACE

            ·         Standards: GSM/GPRS/EDGE/UMTS/HSPA/FDD LTE

·         GPRS/EDGE: 850/900/1800/1900 MHz

·         HSUPA: 900/2100 or 850/1900 MHz optional, DL/UL 7.2/5.76 Mbps, fallback to 2G.

·     HSPA+: 850/900/1900/2100 or 900/2100 or 850/1900 MHz optional, DL/UL 14.4/5.76 Mbps, fallback to 2G, FDD LTE: 800/900/1800/2100/2600 MHz or 700MHz

      (B17or B13) optional, DL/UL 100/50 Mbps, fall-back to 3G/2G.

·         SIM: 1 x (3V & 1.8V)

·      Antenna Interface: SMA Female, 50 ohms impedance. 32-bit high performance microcontroller MCU

·        PLC/MODBUS device data monitoring and controlling

·        Energy Monitoring, e.g. Electricity, Solar, Wind, etc.

·        Water Metering/Flow Meter

·        Distribution Automation

·        Automatic Meter Reading

·        Industrial Automation

·        Remote Devices
