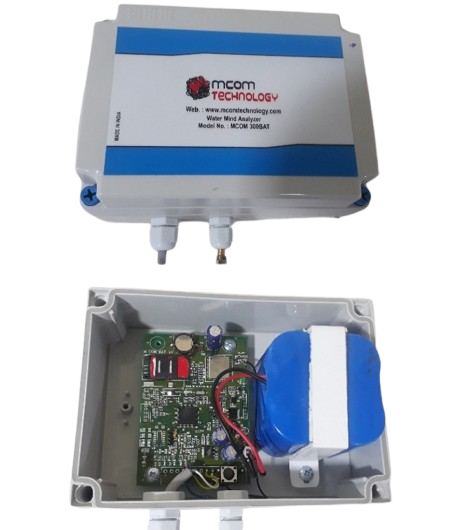

The MCOM300BAT is a compact, battery-powered
wireless RTU designed for long-term remote monitoring. With ultra-low power
consumption, an integrated GSM/GPRS modem, and built-in data logging, it
provides reliable performance in remote and unmanned locations. Its rugged
IP65/IP67 enclosure and high-capacity Lithium Thionyl Chloride battery ensure
up to 4 years of reliable, long-term autonomous performance, making it ideal
for water management, industrial monitoring, and utility applications.
·
Ultra - low
power wireless RTU
·
Integrated
GSM/GPRS modem
·
On-board
data logging with configurable intervals
·
SMS-based
alarms for critical events
·
Battery-powered
operation (Li-SOCl? battery)
·
Compact
field-mountable enclosure
·
Easy
installation & minimum maintenance
· Suitable for remote and isolated locations
· MCOM300 utilizes dual processor architecture in order to combine extreme low power consumption with advanced processing and communication capabilities.
A system controller (ultra-low power MCU) is in continuous operation scanning the digital inputs for alarm condition detection. A powerful communication
processor, switched on and off by the system controller, performs all data processing and controls communications through the internal wireless MODEM.
1. Standards:
GSM/GPRS/EDGE
2. GPRS:
max. 86 kbps (DL & UL), class 10
3. EDGE:
max. 236.8 kbps (DL & UL), class 12
4. Frequency:
850/900/1800/1900 MHz for GPRS/EDGE
5. CSD:
Up to 14.4 kbps
6. SIM:
1 x (3V & 1.8V)
7. Antenna
Interface: SMA Female
8. Inputs/Outputs
· Pulse Input: 1 channel
· Analog Input: 1 channel (0 – 20mA/ 4 - 20 mA)
· Counter
Input: 1 counter, 100 Hz max
9. Communication
· GSM/GPRS
Modem
· SMS
alerts for alarms
·
Water
flow and pressure monitoring
·
Remote
tank level monitoring
·
Energy
metering and utility logging
·
Industrial
automation
·
Pumping
station monitoring
· Leakage detection systems
· Irrigation monitoring
