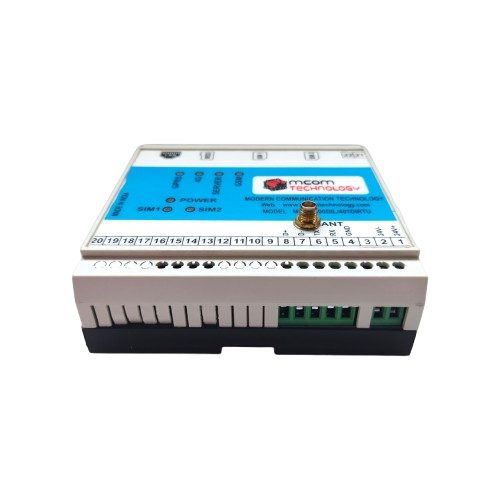

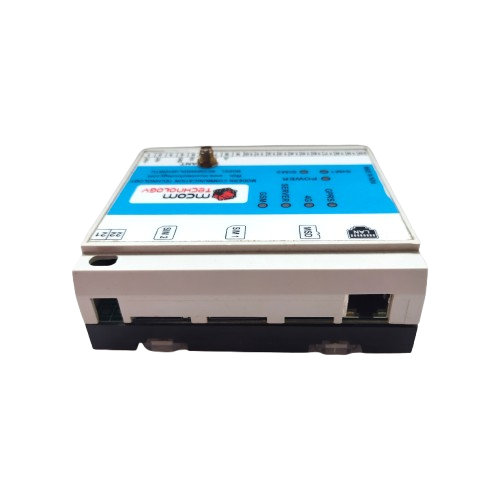

The MCOM400DIL is a rugged 4G cellular modem designed for reliable remote monitoring and control in industrial M2M/IoT applications. It features dual SIM support, RS232/RS485 communication, digital and analog inputs, pulse inputs, and MODBUS RTU Master capability. With wide network compatibility, DIN-rail mounting, and remote configuration via SMS or server, it provides secure, continuous, and intelligent data connectivity for automation, energy, and metering applications.
·
Supports
all types of 4G SIM cards.
·
The
data transmission mode is 4G/3G/2G. (Auto - switcheable)
·
Supports
all types of M2M SIMs.
·
Micro SD up to 16GB.
· Comes with LAN port.
· Supports dual redundancy for SIM cards.
·
Small
antennae included with the device. High gain antennae optional, in case of low
connectivity.
· Two Serial Ports for RS232 and RS485 for external device interface.
·
Five
LED indicators provide status for power, server connection, GPRS connection,
SIM registration or network, 4G indications.
·
Phase
AC input supply, worked within power supply range of 50 to 240V AC, 50 Hz.
·
Operating
temperature: -25 to 85 °C.
·
The plastic enclosure can be mounted on a DIN-rail.
· Supports MODBUS/RTU.
·
Auto
reboot during a pre-set time of a day.
·
Industrial
class design suitable for long time work applications.
·
Facility
to store mobile numbers for authorization of remote configuration.
·
Configuration
of device parameters via serial port or remotely by SMS.
· Handshaking software is provided at central server for device- SCADA/ web application communication.
Cellular Interface
·
Standards:
GSM/GPRS/EDGE/UMTS/HSPA/FDD LTE
·
GPRS/EDGE:
850/900/1800/1900 MHz
·
HSUPA:
900/2100 or 850/1900 MHz optional, DL/UL 7.2/5.76 Mbps, fallback to 2G.
·
HSPA+:
850/900/1900/2100 or 900/2100 or 850/1900 MHz optional, DL/UL 14.4/5.76 Mbps,
fallback to 2G, FDD LTE: 800/900/1800/2100/2600 MHz or 700MHz (B17 or B13)
optional, DL/UL 100/50 Mbps, fallback to 3G/2G.
·
SIM:
2 x (3V & 1.8V)
·
Antenna
Interface: SMA Female, 50 ohms impedance.32-bit high performance
microcontroller MCU
·
32-bit
high performance microcontroller MCU
·
PLC/MODBUS device
data monitoring and controlling
·
Energy Monitoring, e.g. Electricity, Solar,
Wind, etc.
·
Water Metering/Flow Meter
· Distribution Automation
· Automatic Meter Reading
